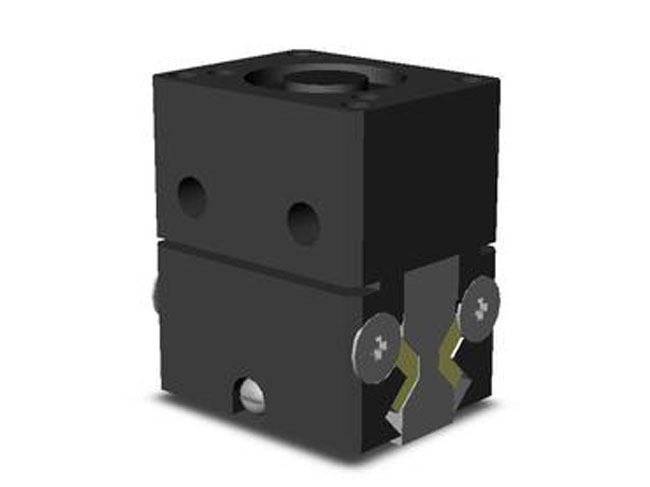

RPM-2M Destaco Robohand RPM-2M Miniature 2 Jaw Parallel Gripper

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

RPM-2M

Destaco Robohand RPM-2M Miniature 2 Jaw Parallel Gripper

For Small Part Gripping

Manufacturer	Destaco
Part Number	RPM-2M
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 2-3 weeks.
UOM	EA

Price: $554.00

Qty:

Description:

Destaco Robohand RPM-2M Miniature 2 Jaw Parallel Gripper

• Miniature gripper for small part gripping
• Zero side play due to Dual V bearing system
• Low friction and smooth operation for precise part position repeatability
• Create compact gripper arrays with top manifold design
• Adjustable pre-load screws eliminates side play over life of unit

Email this page to a friend

Product Attributes

UOM:

Stroke Length (In):

0.19

Bore:

0.39

Grip Force (lbsf):

Number of Jaws:

Weight:

0.2 lbs

Country of Origin (COO):

United States - Required COO must be noted at time of order

Harmonized Tariff (HTS):

8479.90.9596

Component Type:

Grippers

Component Sub-Type:

Parallel Grippers

Product Function:

Gripping

Series:

RPM

Pressure Range:

40-100 psi

Repeatability +/-:

0.001

Imperial or Metric Product:

Metric Version

Accuracy:

0.001

Maximum Finger Length (in):

1.5

Actuation (Open/Closed) (Sec):

Temp Range Standard:

-35° to 80°C (-30° to 180°F)

Temp Range Viton:

-30° to 120°C (-20° to 250°F)

Manufacturer:

Destaco

Markets:

Industrial, Transportation, Food & Packaging, Consumer Goods, Logistics, and Life Sciences

Additional Specifications:

To view a full product information see product resources section on this page

Specific Application:

Ideal for semiconductor and life sciences laboratory, and ultra small gripper for space constrained applications.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

RPM2M

Product Resources
