4Z-FT4-1-HT-SS
Filter - Tee - FT

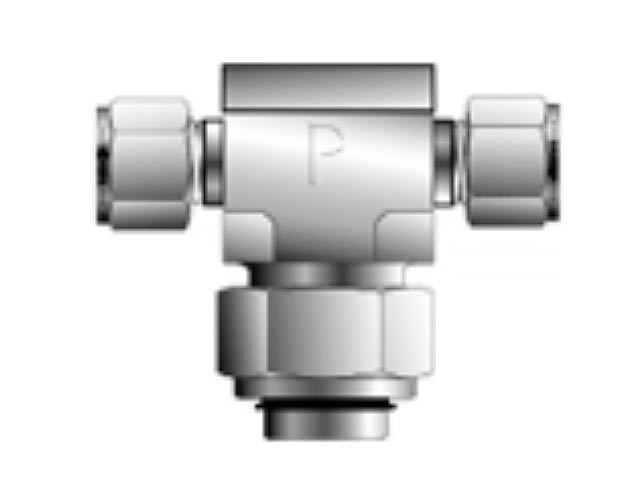

Parker Tee Filter - FT Series
| Manufacturer |
Parker |
| Part Number |
4Z-FT4-1-HT-SS |
| Availability |
Out of Stock
Call to order
|
| UOM |
EA |
| Description: |
Parker FT Series Inline Filters are designed for protection of instrumentation systems from undesirable materials. Component changes or repair and maintenance can admit dirt, chips, scale or other contaminants to the small bore tubing. The FT Series is a compact inline tee filter with high strength forged body design with effective filtration area.
|
Inlet port 1:
1/4" CPI compression
Outlet port 2:
1/4" CPI compression
Material - Seals:
Silver plated nickel alloy c-ring
Material:
316 Stainless steel
Pressure Range:
Low pressure
Connection Type:
Single ferrule compression
Pressure Rating:
6,000 psig (414 bar) CWP
Parker Division:
Instrumentation Products
Parker Group:
Instrumentation
Lubricant:
Perfluorinated polyether
Filtration area:
1.57 in² (1013 mm²)
Operating Temperature:
-100 F to 900 F (-73 C to 482 C)
Application:
In the key markets of chemical & refining, food, beverage & dairy, medical & dental, microelectronics, oil & gas, and power generation.
Safety Notice
WARNING: Products containing brass have a chemical known to the State of California to cause birth
defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
