Back to Product: Wika 50779184 Low Pressure 3A Sanitary Pressure Transmitter Model SA-11 4-20MA, 2-wire DN 1-1/2 Inch Tri-Clamp® X Vented 25 FT Cable with Free Ends Stainless Steel
Click Image to Zoom

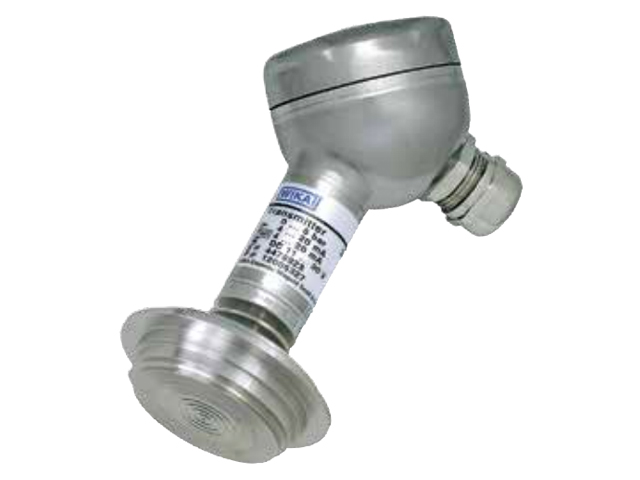

50779184 Wika 50779184 Low Pressure 3A Sanitary Pressure Transmitter Model SA-11 4-20MA, 2-wire DN 1-1/2 Inch Tri-Clamp® X Vented 25 FT Cable with Free Ends Stainless Steel50779184 Wika 50779184 Low Pressure 3A Sanitary Pressure Transmitter Model SA-11 4-20MA, 2-wire DN 1-1/2 Inch Tri-Clamp® X Vented 25 FT Cable with Free Ends Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

50779184

Wika 50779184 Low Pressure 3A Sanitary Pressure Transmitter Model SA-11 4-20MA, 2-wire DN 1-1/2 Inch Tri-Clamp® X Vented 25 FT Cable with Free Ends Stainless Steel

3A Sanitary Pressure Transmitter

Manufacturer Wika
Part Number 50779184
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $1,173.38
Qty:
Description:
WIKA Model SA-11 pressure transmitters meet 3A and EHEDG sanitary criteria for pressure and level measurement in the food, pharmaceutical, cosmetic and beverage industries. They feature 0.25% accuracy, rugged 316L SS wetted construction and a wide operating temperature range. This model features an integral cooling extension between the Tri-Clamp® connection and transmitter body. This design increases the maximum permissible media temperature to 150°C (300oF). The 316L SS flush diaphragm ensures a crevice free seal between the process connection and the pressure measuring diaphragm. The permanently sealed sensing system includes food grade (FDA approved) liquid fill and is designed for "clean in place" (CIP) and "sterilize in place" (SIP) maintenance procedures. The transmitters are available with industry standard 2" Tri-Clamp® connections. They can be ordered with an optional NEMA 6P (IP 68) cable assembly for additional protection in wash down areas.
Email this page to a friend

Product Attributes


UOM:
EA
Process Connection:
DN 1-1/2 Inch Tri-Clamp®
Electrical Connection:
Vented 25 FT Cable with Free Ends
Range:
50 PSI
Transmitter Output:
4-20MA, 2-wire
Supply Voltage:
10-30 VDC
Material:
Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
SA-11
Accuracy:
±0.25% of span
Wetted Parts:
Stainless Steel
Non-linearity:
±0.25% of span BFSL
Manufacturer:
Wika
Application:
For gases, compressed air, vapour, liquids, pastes and powdery media in food and beverage manufacturing, pharmaceutical industry, biotechnology, and for sanitary applications.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 50779184

Product Resources
SA-11 Model
SA-11 Model
