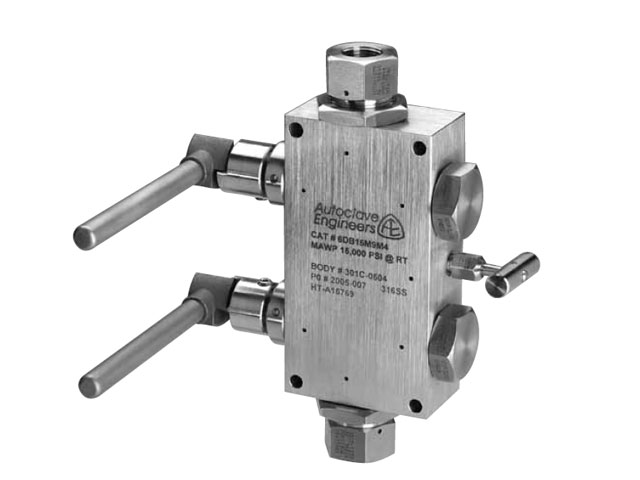

6DB15P6P4 Autoclave Engineers Double Block and Bleed Ball Valve - 6DB6DB15P6P4 Autoclave Engineers Double Block and Bleed Ball Valve - 6DB
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

6DB15P6P4

Autoclave Engineers Double Block and Bleed Ball Valve - 6DB

Parker Autoclave Engineers Double Block and Bleed Ball Valve - 6DB

Manufacturer Parker
Part Number 6DB15P6P4
Availability Out of Stock Call to order
UOM EA

Description:
Double Block and Bleed Features: • One piece, trunnion mounted stem design elimi- nates shear failure and reduces the effects of side loading found in two piece designs. • Re-torqueable seat glands for longer seat life. • Carbon filled PEEK seats offer excellent resistance to chemicals, heat and wear/abrasion. • Vee-stem vent valve. • Full-port flow path minimizes pressure drop. • 316 cold worked stainless steel construction. • Low friction pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torque. • Quarter turn from open to close with positive stop. • Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C)
Email this page to a friend


Product Attributes


UOM:
EA
Connection Type:
3/8 Inch NPT
Orifice size:
0.375 Inch (9.52mm)
Minimum Orifice size:
0.328 Inch (8.33mm)
End Connection Code:
P6
Seat Gland Hex:
1.38 Inch (35.05mm)
Vent Connection Code:
P4
Vent Connection:
1/4" NPT
Material:
316 Stainless steel
Valve Type:
Ball Valve
Series:
6DB
Configuration Type:
Double block and bleed
Flow Configuration Type:
90° turn open/close
Inch/Metric:
Inch
CV Factor:
2.3
Operator Type:
Manual
Material - Seats:
PEEK
Stem Seal:
PTFE
Parker Division:
Autoclave Engineers
Operating Temperature:
0 F to 400 F (-17.8 C to 204 C)
Material - Seals:
Fluorocarbon rubber
Parker Group:
Instrumentation
Stem type:
Trunnion mounted - 1 piece
Pressure Rating:
15,000 psi (1034 bar) MAWP
Application:
Pressure monitoring and test, chemical injection, and drain line isolation.
