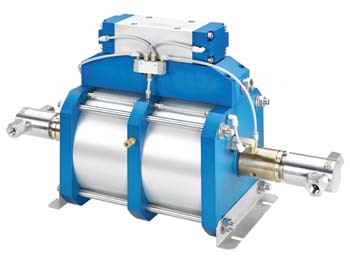

AHL66-2DSCTE Autoclave Engineers 10" High Flow, Air-Driven, High Pressure Liquid Pump - AHL66-2D SeriesAHL66-2DSCTE Autoclave Engineers 10" High Flow, Air-Driven, High Pressure Liquid Pump - AHL66-2D Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

AHL66-2DSCTE

Autoclave Engineers 10" High Flow, Air-Driven, High Pressure Liquid Pump - AHL66-2D Series

Parker Autoclave Engineers 10" High Flow, Air-Driven, High Pressure Liquid Pump - AHL66-2D Series

Manufacturer Parker
Part Number AHL66-2DSCTE
Availability Out of Stock Call to order
UOM EA

Description:
Parker Autoclave Engineers 10" High Flow, Air-Driven, High Pressure Liquid Pump - AHL66-2D Series
Email this page to a friend


Product Attributes


UOM:
EA
Liquid Inlet Connection:
1/2" FNPT
Liquid Outlet Connection:
1/2" FNPT
Liquid Inlet Location:
Side
Isolation Chamber:
Included
Liquid Seal Material:
Thermoplastic polyester u-cup with EPDM o-rings
Series:
AHL66-2D
Pump Type:
Liquid Pump
Inch/Metric:
Inch
Material:
Stainless Steel
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Pressure Ratio:
1:133
Maximum Outlet Pressure:
13,300 psi (917 bar)
Volume Displacement per Cycle:
7.8 in³ (127.8 cm³)
Air Drive Seals:
Buna-N
Maximum Operating Temperature:
0 F to 140 F (-18 C to 60 C)
Air Drive type:
Double acting, double piston
Air Piston Diameter:
10 Inch
Main Air Drive Supply Connection:
1" FNPT
Application:
In the key markets of oil and gas, chemical, industrial and research industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
