CCV6001-08L Racor CCV6000 Closed Crankcase Ventilation Filter System - CCV6001-08LCCV6001-08L Racor CCV6000 Closed Crankcase Ventilation Filter System - CCV6001-08L
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

CCV6001-08L

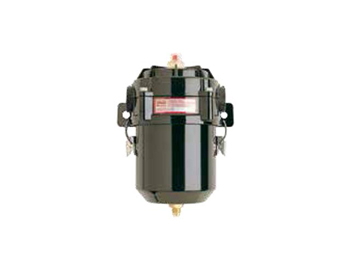

Racor CCV6000 Closed Crankcase Ventilation Filter System - CCV6001-08L

Parker Racor CCV6000 Closed Crankcase Ventilation Filter System - CCV6001-08L

Manufacturer Parker
Part Number CCV6001-08L
Availability Out of Stock Call to order
UOM EA

Description:
The Parker Racor CCV6000 units include stainless steel latches for tool-less element change, a die cast head, glass-filled nylon and black powder epoxy-coated steel bowl, and a drain check valve that allows collected oil to return to the crankcase, significantly lowering oil consumption.
Email this page to a friend


Product Attributes


UOM:
EA
Hose Size:
0.375 Inch (0.95 cm)
Media Density:
High
Maximum Flow:
20 cfm (566 lm)
Replacement Element:
CCV55274-08
Swivel fitting:
#6 JIC (2 pcs.)
Weight:
5.0 lbs (2.3 kg)
Width:
8.6 Inch (21.8 cm)
Trade Name:
Vaporbloc™
Series:
CCV6000
Configuration Type:
CCV Filter System
System Type:
Closed
Inch/Metric:
Inch
Port Size:
1 5/8"-12 SAE
Height:
12 Inch (30.5 cm)
Depth:
7.3 Inch (18.5 cm)
Parker Group:
Filtration
Parker Division:
Racor
Maximum Horsepower:
800 hp (596.6 kw)
Filtered Medium:
Engine Blowby Gas
Operating Temperature:
-40° to 240°F (-40°C to 116°C)
Inlet Location:
Left
Crankcase pressure regulator:
Integral
Check Valve:
1/4" NPT
Function:
Non-Bypass Assembly
Application:
On and off highway including truck and bus, construction, agriculture, and marine.
