Back to Product: 6-4 Series Oil-lubricated Piston

Click Image to Zoom

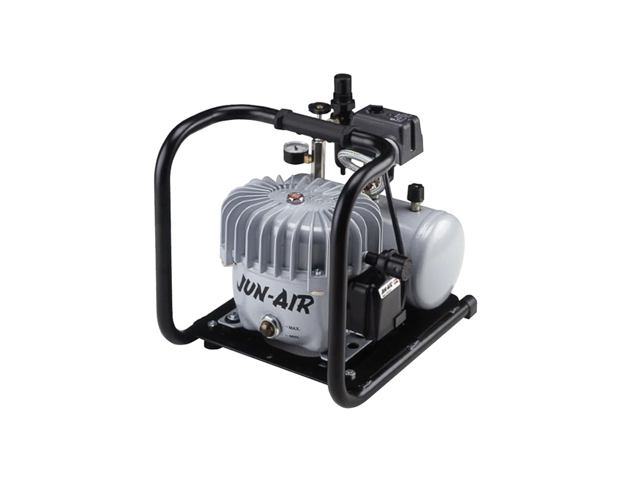

1152000 6-4 Series Oil-lubricated Piston

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

1152000

6-4 Series Oil-lubricated Piston

Jun-Air Quiet Air Oil-lubricated Piston Compressor

Manufacturer	Jun-Air
Part Number	1152000
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 5-6 weeks.
UOM	EA

Price: $2,885.84

Qty:

Description:

When a reliable supply of quiet compressed air is required, Jun-Air’s oil-lubricated range of compressors are the perfect choice. The noise level is as low as 35 dB(A) - far below the level of normal conversation. Jun-Air’s quiet, vibration-free and reliable compressors have a compact design and are easily mounted at the place of use. The oil-lubricated piston compressor is supplied ready for use with a range of receiver sizes.

Furthermore, these compressors are available with various types of accessories, including different filters for removal of oil and dirt particles as well as possible oil vapor and odors to improve the air quality. JUN-AIR oil-lubricated piston compressors are – contrary to traditional compressors – not supplied with piston rings. Instead, the tolerance between the piston and the cylinder has been reduced, minimizing the heat development and the energy loss.

Email this page to a friend

Product Attributes

UOM:

Displacement:

1.77 cfm (50 l/min) 50 Hz, 2.12 cfm (60 l/min) 60 Hz

FAD @ Max Pressure (50 Hz):

1.13 cfm (32 l/min)

FAD @ Max Pressure (60 Hz):

1.31 cfm (37 l/min)

Power rating (50 Hz):

0.46 hp (0.34 kw)

Power rating (60 Hz):

0.46 hp (0.34 kw)

Net weight:

51 lbs (23 kg)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Series:

6-4 Oil-lubricated Piston

System Type:

Base Unit

Country/Region:

North America Low Volt

Inch/Metric:

Inch

Maximum pressure:

120 psi (8.0 bar)

Voltage:

230V / 50-60 Hz

Duty Cycle:

50%

Tank Size:

1.1 gal (4 litres)

Noise Level:

45 dB(A)50 Hz, 45 dB(A)60 Hz

Manufacturer:

Jun-Air

Markets:

Lab, Industrial

Safety/Certifications:

CSA, CE

Additional Specifications:

To view full product information see product resources section on this page

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
