Back to Product: Gems 117716 LS-77700 Series Bent Stem Level Switch
Click Image to Zoom
117716 Gems 117716 LS-77700 Series Bent Stem Level Switch117716 Gems 117716 LS-77700 Series Bent Stem Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

117716

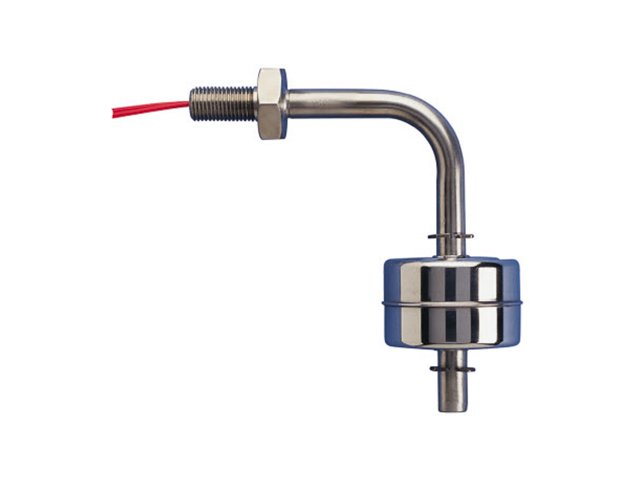

Gems 117716 LS-77700 Series Bent Stem Level Switch

Manufacturer Gems Sensors
Part Number 117716
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $232.18
Qty:
Description:
Gems 117716 LS-77700 Series Bent Stem Level Switch



LS-77700 Series Single-Point Level Switches perform in liquids with specific gravities as low as 0.45; switches protrude into tank less than 3 inches (76 mm).
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Stem Material:
316 Stainless Steel
Float Material:
316 Stainless Steel
Mounting Size:
3/8-24"
Switch Type:
SPST (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-77700
Float Diameter:
1 1/2"
Mounting Configuration:
Horizontal
Switch Operation:
Normally Open (Non-Reversible)
Electrical Termination:
22 AWG, 24" long Polymeric leads
Size:
Small
Maximum Temperature:
300° F
Minimum Liquid SG:
0.7
Actuation Level:
2"
Wetted Materials:
316 Stainless Steel, PH-15-7-MO Stainless Steel
Materials of Construction:
Alloy
Sensor Type:
Float Type
Minimum Temperature:
-40° F
Maximum pressure:
100 PSI
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, CE
Markets:
Alt Energy, Food & Beverage, General Industry, HVAC/R
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Alarm Panels, Specialty Chemical Tanks, Food & Beverage Equipment, Solar, Wind Mills

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
