Back to Product: Gems 128500 LS-700F Level Switch

Click Image to Zoom

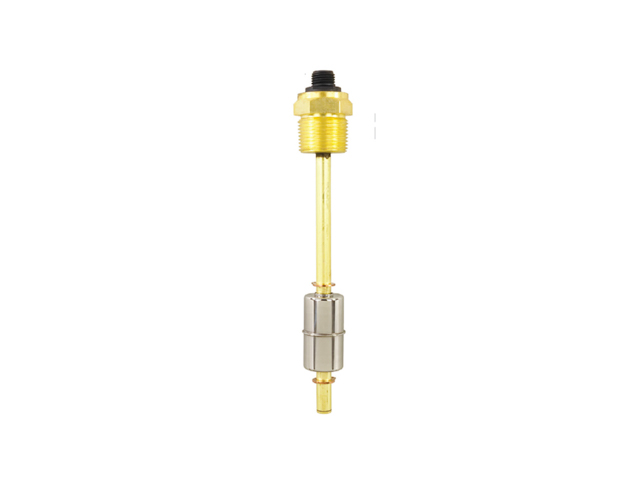

128500 Gems 128500 LS-700F Level Switch

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

128500

Gems 128500 LS-700F Level Switch

Manufacturer	Gems Sensors
Part Number	128500
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities: Call for availability.
UOM	EA

Price: $127.76

Qty:

Description:

Gems 128500 LS-700F Level Switch

LS-700F Series Single-Point Level Switch provides overfill protection for refrigerant tanks and enables safe compliance with EPA directives to recover refrigerants. These units are designed to fit standard 30# and 50# D.O.T. approved refrigerant tanks. They provide 80% full shutoff capability when used as an integral part of a recovery system.

Email this page to a friend

Product Attributes

UOM:

Ordering Note:

Minimum ordering quantity is 1 piece for this item

Stem Material:

Brass

Float Material:

304 Stainless Steel

Mounting Size:

3/4" NPT Male

Switch Type:

SPST (20 VA)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Component Type:

Level Sensors & Switches

Component Sub-Type:

Single-Point Level Switches

Series:

LS-700F

Float Diameter:

29/32"

Mounting Configuration:

Vertical

Switch Operation:

Normally Closed (Non-Reversible)

Electrical Termination:

3 Pin Quick Disconnect Receptacle

Size:

Specialty

Actuation Level:

3 3/16"

Minimum Liquid SG:

0.98

Wetted Materials:

Brass, 304 Stainless Steel

Maximum pressure:

400 PSI

Maximum Temperature:

221° F

Materials of Construction:

Alloy

Sensor Type:

Float Type

Minimum Temperature:

-40° F

Manufacturer:

Gems Sensors

Safety/Certifications:

UL Recognized, CSA Listed

Markets:

Alt Energy, General Industry, HVAC/R

Additional Specifications:

To view full product information see product resources section on this page

Specific Application:

Air Conditioning Systems, Heating/Condensate Systems, Green Energy

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
