149350 Gems 149350 LS-750 Series Level Switch149350 Gems 149350 LS-750 Series Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

149350

Gems 149350 LS-750 Series Level Switch

Manufacturer Gems Sensors
Part Number 149350
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $193.30
Qty:

Description:

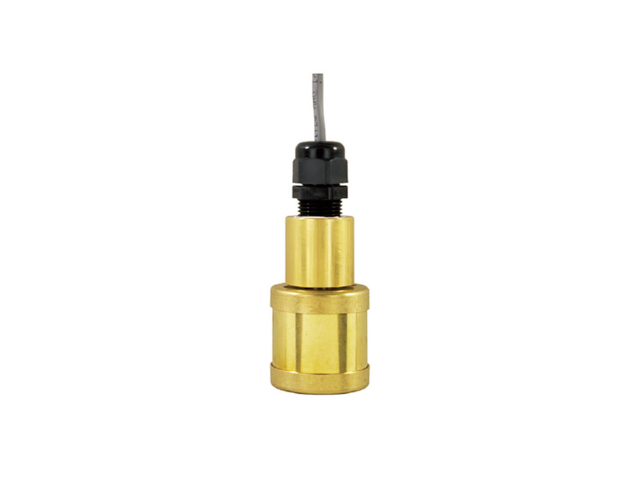

Gems 149350 LS-750 Series Level Switch



LS-750 Series Single-Point Level Switch units are ideal for use in oils and water. With a compact-sized float, slosh shield and weighted collar, the LS-750 provides liquid level detection for a wide variety of applications. Suspend in stand pipes or sumps for leak detection duty or drop into wells for ground-water monitoring. Supplied with 25 feet (7.62 m) of waterproof cable.

Email this page to a friend


Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Stem Material:
Brass
Float Material:
Buna
Mounting Size:
Bracket
Switch Type:
SPST (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-750
Float Diameter:
1"
Mounting Configuration:
Vertical
Switch Operation:
Normally Closed (Non-Reversible)
Electrical Termination:
22 AWG, 2 Conductor, 25', PVC Cable
Size:
Specialty
Actuation Level:
3/4"
Sensor Type:
Float Type
Minimum Liquid SG:
0.45
Materials of Construction:
Alloy
Maximum Temperature:
230° F
Minimum Temperature:
-40° F
Wetted Materials:
Brass, Buna N, Nylon, PVC, Berylium Copper
Maximum pressure:
150 PSI
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, CSA Listed, CE
Markets:
Alt Energy, General Industry, HVAC/R, Water & Wastewater
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Air Conditioning Systems, Heating/Condensate Systems, Green Energy, Groundwater

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
