Back to Product: Gems 16MM1A00505 16M Series General Purpose Control

Click Image to Zoom

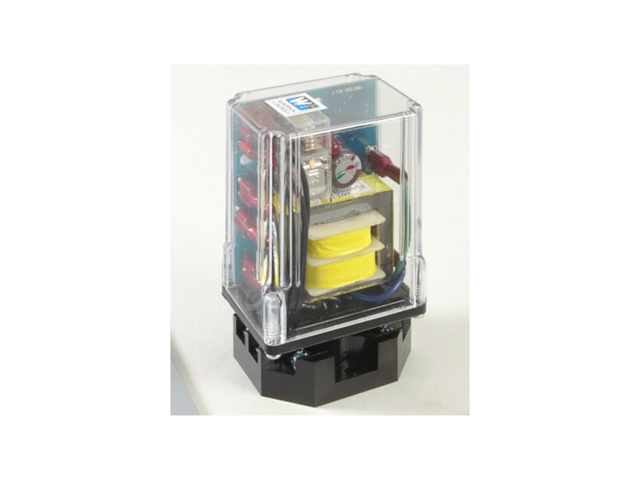

16MM1A00505 Gems 16MM1A00505 16M Series General Purpose Control

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

16MM1A00505

Gems 16MM1A00505 16M Series General Purpose Control

Manufacturer	Gems Sensors
Part Number	16MM1A00505
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities: Call for availability.
UOM	EA

Price: $276.62

Qty:

Description:

Gems 16MM1A00505 16M Series General Purpose Control

Series 16M - General Purpose Designed for either differential or single-level service. U.L. "Motor Controller" listing, 8-pin socket with screw-type connections make the unit easy to install and service. Sensitivity of up to 1 million ohm/cm.

Email this page to a friend

Product Attributes

UOM:

Ordering Note:

Minimum ordering quantity is 1 piece for this item

Sensitivity:

26 K

Supply Voltage:

120 VAC

Control Style:

Plug-In Module

Protection:

Non-Intrinsically Safe

Contact Rating:

10 Amp Resistive 1/3 horse power

Time Delay in seconds (Increasing Level):

Time Delay in seconds (Decreasing Level):

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Component Type:

Conductivity Control Devices

Component Sub-Type:

Liquid Level Controllers

Series:

16M

Number of Channels:

Maximum Temperature:

150° F

Terminal Style:

Screw Connector

Minimum Temperature:

-40° F

Enclosure Type:

None

Mode of Operation:

Inverse

Socket Style:

8 Pin Octal

Contact Design:

1 Normally Open & 1 Normally Closed (Non-powered)

Secondary Voltage:

12 VAC

Safety/Certifications:

UL 508 General Purpose

Markets:

Alt Energy, Food & Beverage, General Industry, HVAC/R, Marine, Power Generation, Water & Wastewater

Additional Specifications:

To view full product information see product resources section on this page

Specific Application:

Single-Level Service, Differential Service, Point Level, Alarms, Valve Control, Pump Control

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

16MM1A00505
