Back to Product: Gems 209157 PS71-50-4MSZ-C-H Miniature Pressure Switch
Click Image to Zoom

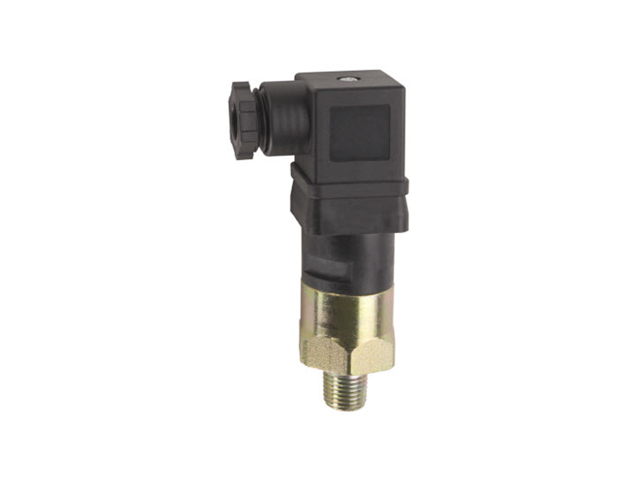

209157 Gems 209157 PS71-50-4MSZ-C-H Miniature Pressure Switch209157 Gems 209157 PS71-50-4MSZ-C-H Miniature Pressure Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

209157

Gems 209157 PS71-50-4MSZ-C-H Miniature Pressure Switch

Manufacturer Gems Sensors
Part Number 209157
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 4-5 weeks.
UOM EA
Price: $113.32
Qty:
Description:
Gems 209157 PS71-50-4MSZ-C-H Miniature Pressure Switch



PS71 Series Pressure Switches are versatile general purpose hydraulic pressure switches that can be used in a wide range of hydraulic pressure sensor and pneumatic pressure sensor applications. The proven piston/diaphragm design of the hydraulic pressure switch offers outstanding accuracy over a very wide pressure range with an outstanding 6000 psi (414 bar) proof pressure.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 10 pieces for this item
Pressure Range:
1000-3000 psi
Switch Type:
SPDT
Electrical Termination:
DIN 43650A Male Half Only
Switch Rating:
5 Amps
Fitting Type:
7/16"-20 SAE Male
Fitting Material:
12L14 Zinc-Plated Steel
Burst Pressure:
9000 psi
Proof Pressure:
6000 psi
Deadband:
70 psi +12% of setting
Country of Origin (COO):
United States - Required COO must be noted at time of order
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Pressure Switches & Transducers
Component Sub-Type:
General Purpose Pressure Switches
Series:
PS71
Repeatability +/-:
+/-30 psi +3% of setting
Minimum Temperature:
15° F
Diaphragm material:
Nitrile
Maximum Temperature:
185° F
Manufacturer:
Gems Sensors
Safety/Certifications:
CE (UL Available)
Markets:
General Industry, OHV & Specialty Vehicle, Power Generation, Transportation
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Machinery, Elevators, Fire Suppression, Off Highway and Construction Vehicles, Fire Trucks, Power Generation Equipment, Specialty Vehicles
