Back to Product: Gems 225100 UCL-510 Series Continuous Ultrasonic Transmitter
Click Image to Zoom
225100 Gems 225100 UCL-510 Series Continuous Ultrasonic Transmitter225100 Gems 225100 UCL-510 Series Continuous Ultrasonic Transmitter
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

225100

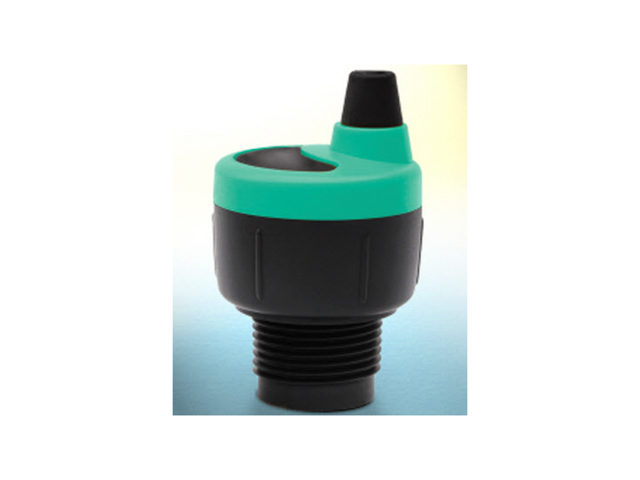

Gems 225100 UCL-510 Series Continuous Ultrasonic Transmitter

Manufacturer Gems Sensors
Part Number 225100
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 5-6 weeks.
UOM EA
Price: $1,453.00
Qty:
Description:
Gems 225100 UCL-510 Series Continuous Ultrasonic Transmitter



UCL-510 Series Ultrasonic Continuous Level Transmitter is a non-contact level sensor with no-moving-parts built for general purpose small tank applications 49.2" (1250 mm) or less and offers switch, controller and transmitter capabilities in one multi-function transmitter. It is suited for corrosive and dirty applications, is virtually maintenance free and reduces tank system hardware.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Accuracy:
0.125"
Beam Width:
2"
Maximum Loot Resistance:
400 Ohms
Signal Output:
4-20 ma
Loop Fail Safe:
4 mA, 20mA, 21 mA, 22 mA, or hold last
Temperature Compensation:
Automatic over Range
Minimum Process Temperature:
20° F
Minimum Ambient Temperature:
-31° F
Maximum Ambient Temperature:
140° F
Pressure:
30 PSI
Materials of Construction:
PX/ABS FR, PVDF, Santoprene, Viton
Deadband:
2"
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Continuous Level Transmitters
Series:
UCL-510
Process Conneciton:
1" NPT
Electrical Connection:
48" Polyethylene Cable
Manufacturer:
Gems Sensors
Safety/Certifications:
CE, cFMus
Markets:
General Industry, HVAC/R, Oil & Gas, Process, Process Tank Gauging, Water & Wastewater
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Water and Waste Water, Food and Beverage, Control Automation, Acids, Inks, Paints, Chemical Feed, Slurries

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 225100

Product Resources
Gems Catalog
Gems Catalog
