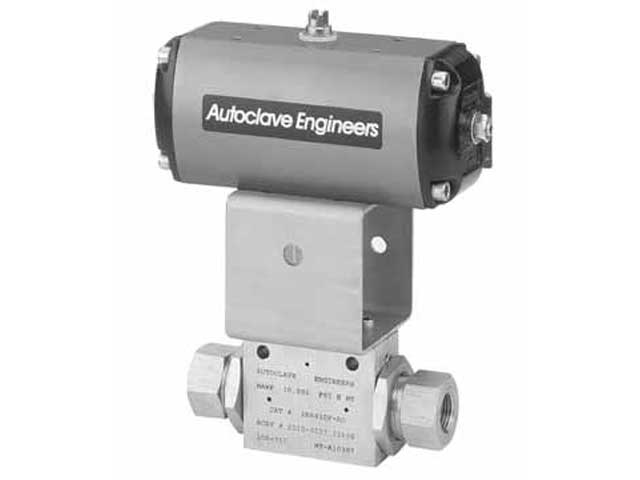

2B4-AO Autoclave Engineers Pneumatic Operated Ball Valve Actuator - 2B4

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

2B4-AO

Autoclave Engineers Pneumatic Operated Ball Valve Actuator - 2B4

Parker Autoclave Engineers Pneumatic Operated Ball Valve Actuator - 2B4

Manufacturer	Parker
Part Number	2B4-AO
Availability	Out of Stock Call to order
UOM	EA

Call for availability

Description:

Ball Valve Actuator Features/Options: Pneumatic Operators • Used for remote and automatic operation • Air-to-open/spring-to-close • Air-to-close/spring-to-open • Air-to-open and close (double acting) • Limit switches or limit switches with visual indicators available • High temperature option available. • Stainless steel housing for corrosive applications available. • Optional solenoid valve available • Standard anodized aluminum housing • Optional epoxy coated housing available

Email this page to a friend

Product Attributes

UOM:

Connection Type:

1/8 Inch NPT

Operator Type:

Pneumatic - air to open/spring to close

Orifice size:

0.250 Inch (6.35mm)

Material:

Aluminum

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Valve Type:

Ball Valve Actuator

Series:

Configuration Type:

2-way

Inch/Metric:

Inch

Parker Group:

Instrumentation

Pressure Rating:

80 psi (5.51 bar) min / 150 psi (10.34 bar) max

Operating Temperature:

0 F to 175 F (-17 C to 79 C)

Parker Division:

Autoclave Engineers

Application:

Laboratories, test stands, control panels, chemical research, pilot plants, water blast pumping units, and high volume chemical injection skids.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

2B4AO
