302-12-RL 302 Series

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

302-12-RL

302 Series

Parker Medium Pressure Rubber Worldwide DIN Hydraulic Hose

Manufacturer	Parker
Part Number	302-12-RL
Availability	In Stock (103) In Stock. Ships in 1-2 days from RG. (6487) In Stock. Ships in 2-3 days from Partner Direct. Shipping from this inventory may incur increased pricing and/or shipping costs from multiple locations. Out of Stock quantities available in 5-6 weeks.
UOM	FT

Price: $18.52

Qty:

Description:

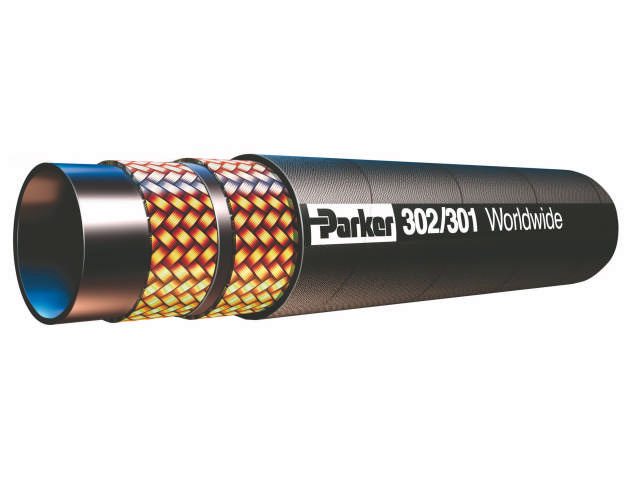

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Nitrile. Reinforcement: Two braids steel wire. Cover: Synthetic rubber.

Email this page to a friend

Product Attributes

UOM:

Working Pressure:

3100 PSI (210 bar)

Inner Diameter:

0.75 Inch

Mating Fitting Series:

43, 30

Material:

Rubber

Country of Origin (COO):

United States - Required COO must be noted at time of order

Harmonized Tariff (HTS):

4009.21.0000

Component Type:

Hose

Series:

302

Hose Pressure Range:

Medium

Configuration Type:

Hose

Application:

Hydraulic

Inch/Metric:

Inch

Distinct Properties:

Worldwide DIN

Working Pressure Range:

3000 to 3999 PSI (207 to 276 bar)

Inner Diameter Inch/mm:

Inch

Parker Group:

Fluid Connector

Parker Division:

Hose Products

Mating End Fitting Series:

43, 30

Application:

Hydraulic

Specific Application:

Petroleum base hydraulic fluids and lubricating oils

Distinct Properties:

Worldwide DIN

Specification:

ISO 1436-1 TYPE 2SN / SAE 100R2 TYPE AT / EN 853 TYPE 2SN

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
