Back to Product: Gems 30290 LS-2050 Series Level Switch
Click Image to Zoom

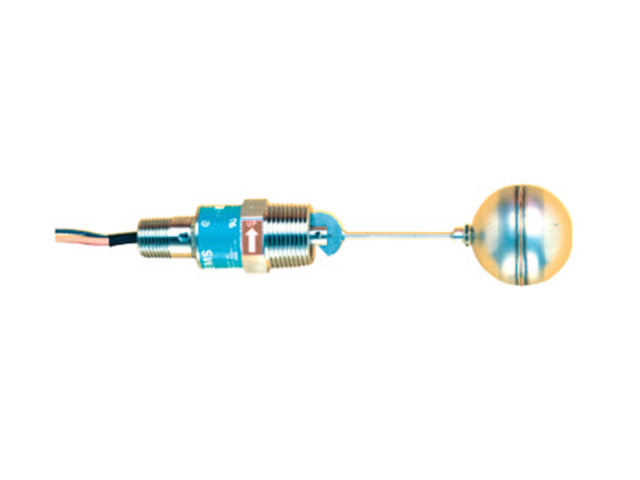

30290 Gems 30290 LS-2050 Series Level Switch30290 Gems 30290 LS-2050 Series Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

30290

Gems 30290 LS-2050 Series Level Switch

Manufacturer Gems Sensors
Part Number 30290
Availability In Stock (0) In Stock. Ships in 1-2 days from RG.
(241) In Stock. Ships in 2-3 days from Partner Direct. Shipping from this inventory may incur increased pricing and/or shipping costs from multiple locations.
Out of Stock quantities available in 4-5 weeks.
UOM EA
Price: $529.88
Qty:
Description:
Gems 30290 LS-2050 Series Level Switch



LS-2050 Series Single-Point Level Switches solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks. Installation is through the tank side at the detection point. LS-2050 Series switches are ideal for pressures up to 900 psig (62 bar) and temperatures up to 300°F (149°C).
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Stem Material:
316 Stainless Steel
Float Material:
316 Stainless Steel
Mounting Size:
1" NPT Male
Switch Type:
SPDT (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-2050
Float Diameter:
2"
Mounting Configuration:
Horizontal
Switch Operation:
Selectable
Electrical Termination:
18 AWG, 24" long, Polymeric leads
Size:
Large
Sensor Type:
Float Type
Maximum Temperature:
300° F
Actuation Level:
1"
Minimum Liquid SG:
0.9
Materials of Construction:
Alloy
Minimum Temperature:
-40° F
Wetted Materials:
316 Stainless Steel, Teflon, Ceramic
Maximum pressure:
900 PSI
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, CSA Listed, CE
Markets:
Alt Energy, General Industry, Marine, Oil & Gas, Power Generation, Process, Process Tank Gauging, Water & Wastewater
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Machine Tools, Shipbuilders, Process Tanks, Extraction & Distribution Equipment, Marine Vessels, Power Generating Facilities

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 30290

Product Resources
Gems Catalog
Gems Catalog
