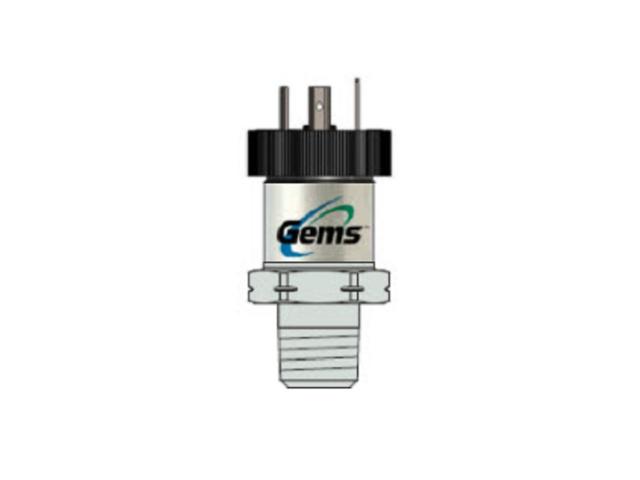

3500S150PA02G000 Gems 3500S150PA02G000 3500 Series Pressure Transducer3500S150PA02G000 Gems 3500S150PA02G000 3500 Series Pressure Transducer
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

3500S150PA02G000

Gems 3500S150PA02G000 3500 Series Pressure Transducer

Manufacturer Gems Sensors
Part Number 3500S150PA02G000
Availability Out of Stock Call to order
UOM EA

Description:
Gems 3500S150PA02G000 3500 Series Pressure Transducer



For OEMs that need consistent high levels of performance, reliability and stability the 3500 Series units offer a small package size with all stainless steel wetted parts at an unbeatable price performance ratio. A wide choice of electrical outputs as well as both electrical and pressure connections means the unit is suitable for most applications without modification. The compact construction of the 3500 Series makes it ideal for installation where space is at a premium.

Email this page to a friend


Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 5 pieces for this item
Output:
{S} 0-10 V
Pressure Port:
{02} 1/4"-18 NPT External
Electrical Connection:
{G} Large DIN
Pressure Range:
{150P} 0-150 psi
Cable Length:
{00} No Cable
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Pressure Switches & Transducers
Component Sub-Type:
MMS Pressure Transducers
Series:
3500
Optional Restrictor:
{0} No Restrictor
Pressure Datum:
(A) Absolute
Manufacturer:
Gems Sensors
Safety/Certifications:
CE, PED, RoHS
Markets:
Agricultural, Food & Beverage, General Industry, Marine, Medical
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Chemical Metering/Injection, Fire Suppression, Gas Delivery, Machinery, Laboratory & Testing, Process Tanks, Industrial Water Treatment, Groundwater Monitoring

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
