Back to Product: Gems 35657 LS-1800 Series Level Switch

Click Image to Zoom

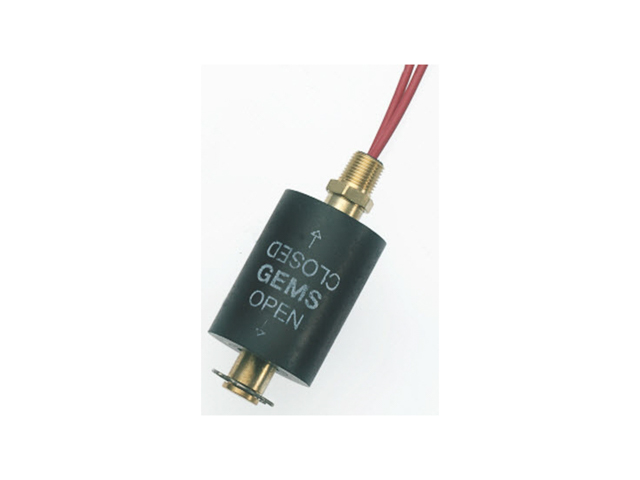

35657 Gems 35657 LS-1800 Series Level Switch

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

35657

Gems 35657 LS-1800 Series Level Switch

Manufacturer	Gems Sensors
Part Number	35657
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 4-5 weeks.
UOM	EA

Price: $148.86

Qty:

Description:

Gems 35657 LS-1800 Series Level Switch

LS-1800 Series Single-Point Level Switches are intermediate in size, are suitable for high viscosity liquids and provide excellent stability for general use in oils and water. With large float displacement, the LS-1800 Series switch withstands rough service.

Email this page to a friend

Product Attributes

UOM:

Ordering Note:

Minimum ordering quantity is 1 piece for this item

Stem Material:

316 Stainless Steel

Float Material:

Buna

Mounting Size:

1/8" NPT Male

Switch Type:

SPST (100VA)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Component Type:

Level Sensors & Switches

Component Sub-Type:

Single-Point Level Switches

Series:

LS-1800

Float Diameter:

1 1/4"

Mounting Configuration:

Vertical

Switch Operation:

Normally Open (Reversible)

Electrical Termination:

18 AWG, 24" long, Polymeric leads

Size:

Large

Wetted Materials:

316 Stainless Steel, Buna N, Hysol

Actuation Level:

7/8"

Minimum Liquid SG:

0.75

Sensor Type:

Float Type

Materials of Construction:

Alloy

Maximum Temperature:

230° F

Minimum Temperature:

-40° F

Maximum pressure:

150 PSI

Manufacturer:

Gems Sensors

Markets:

Alt Energy, Food & Beverage, General Industry, HVAC/R, Printing

Additional Specifications:

To view full product information see product resources section on this page

Specific Application:

Machinery, Printing Equipment, Tanks, Fountains, Green Energy

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

35657
