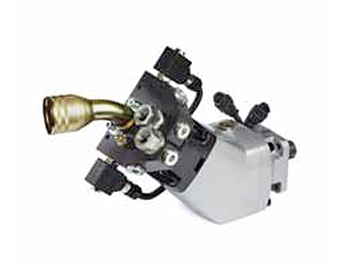

3781471 F2 Twin Flow Fixed Displacement Parker VOAC Bent-Axis Truck Pump

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

3781471

F2 Twin Flow Fixed Displacement Parker VOAC Bent-Axis Truck Pump

Parker F2 Series Twin Flow Bent-Axis Truck Pump

Manufacturer	Parker
Part Number	3781471
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 4-5 weeks.
UOM	EA

Price: $4,087.59

Qty:

Description:

Parker's F2 Series fixed displacement piston pumps are widely used on truck applications with operating pressure up to 5000 psi (350 bar). These twin flow pumps provide two independent output flows with a single inlet in a compact package.

Email this page to a friend

Product Attributes

UOM:

Displacement:

70/35 cc/rev

Function:

Pump counter-clockwise

Model Number:

F02-070-035-L

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

8412298045

Series:

F02

Pump Type:

Displacement Pump

Inch/Metric:

Inch

Parker Division:

Hydraulic Pump

Port Threads:

N/A

Mounting Flange:

DIN flange

Outlet Pressure:

5,000 psi (350 bar)

Rated Speed:

1800 rpm

Maximum Input Horsepower:

147 hp (109.8 kw)

Flow @ Rated RPM:

32.7 gpm (123.8 lpm) Port A, 17.2 gpm (65.1 lpm) Port B

Parker Group:

Hydraulic

Application:

Knuckle boom loaders, cranes, mowers, cutters, off-highway trucks, fan drives, dump trucks, truck mounted cranes, lift trucks, vaccum truck systems, refuse trucks, ASL, and rear loaders.
