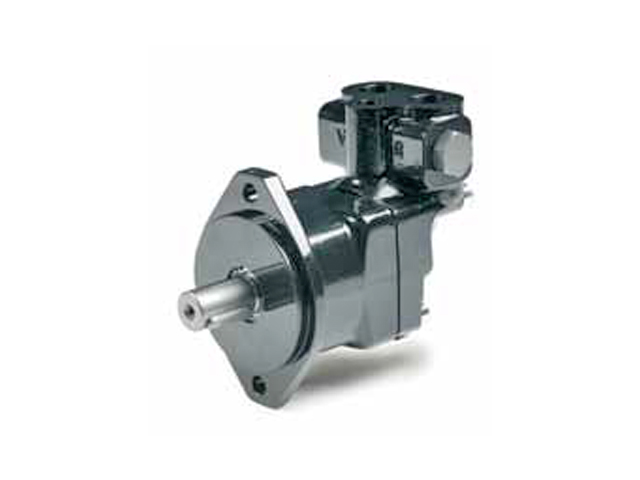

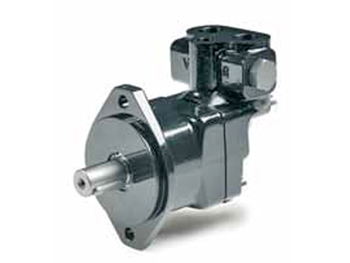

3785970 F11 Small Frame Fixed Displacement Parker VOAC Bent-Axis Motor

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

3785970

F11 Small Frame Fixed Displacement Parker VOAC Bent-Axis Motor

Parker F11 Series Small Frame Fixed Displacement Bent-Axis Motor

Manufacturer	Parker
Part Number	3785970
Availability	Out of Stock Discontinued
UOM	EA

Description:

Parker's F11 is a well proven bent axis, fixed displacement heavy-duty motor series. They can be used in numerous applications on both open and closed loop circuits where high speed and extreme shaft loads are required.

Email this page to a friend

Product Attributes

UOM:

Displacement:

19 cc/rev

Function:

Motor high speed

Model Number:

F11-019-SB-CS-K-000-000-B

Shaft Seal:

Fluorocarbon rubber saw motor

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

8412298045

Series:

F11

Inch/Metric:

Inch

Parker Division:

Hydraulic Pump

Outlet Pressure:

5,000 psi (350 bar)

Parker Group:

Hydraulic

Mounting Flange:

CETOP flange

Shaft:

Metric keyed

Optional functions:

Standard

Port Threads:

BSP Threads

Version:

Standard

Continuous Drive Speed:

8100 rpm

Flow @ Rated RPM:

40 gpm (151.4 lpm)

Options:

Power boost

Application:

Saw drives, feller bunchers, skidders, forwarder, cranes, mowers, cutters, aircraft test stands, deck cranes, constant tension winches, hatch covers, nitrogen pumpers, frac trucks, coil tubing, skid steer, off-highway trucks, fan drives, and dust collectors.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

F11019SBCSK000000B
