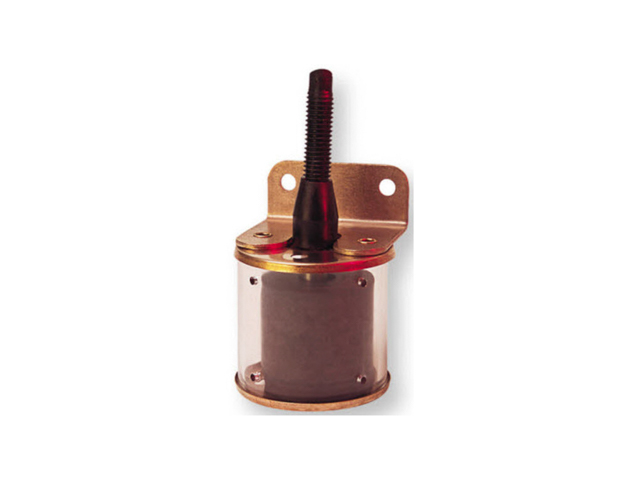

43765 Gems 43765 LS-270 Series Level Switch

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

43765

Gems 43765 LS-270 Series Level Switch

Manufacturer	Gems Sensors
Part Number	43765
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 4-5 weeks.
UOM	EA

Price: $247.73

Qty:

Description:

Gems 43765 LS-270 Series Level Switch

LS-270 Series Single-Point Level Switches are small and lightweight and can be bracket-mounted to any convenient surface. They are extremely stable in non-static, highly contaminated liquids and ideal for use in oils and water. Slosh shielding minimizes effects of turbulence and helps prevent interference by foreign material.

Email this page to a friend

Product Attributes

UOM:

Ordering Note:

Minimum ordering quantity is 1 piece for this item

Stem Material:

316 Stainless Steel

Float Material:

Buna

Mounting Size:

Bracket

Switch Type:

SPST (20 VA)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Component Type:

Level Sensors & Switches

Component Sub-Type:

Single-Point Level Switches

Series:

LS-270

Float Diameter:

1 7/8"

Mounting Configuration:

Vertical

Switch Operation:

Normally Open (Reversible)

Electrical Termination:

18 GA, 2 Conductor 72" Neoprene cable

Size:

Specialty

Actuation Level:

1 3/8"

Minimum Liquid SG:

0.55

Sensor Type:

Float Type

Minimum Temperature:

-40° F

Maximum Temperature:

140° F

Materials of Construction:

Alloy

Wetted Materials:

316 Stainless Steel, Buna N, Berylium Copper, Copper Nickel, Polycarbonate, 304 Stainless Steel

Maximum pressure:

150 PSI

Manufacturer:

Gems Sensors

Safety/Certifications:

UL Recognized

Markets:

General Industry, Marine, Process, Process Tank Gauging, Water & Wastewater

Additional Specifications:

To view full product information see product resources section on this page

Specific Application:

Machinery, Elevators, Process Tanks, Shipbuilders, Marine Vessels, Groundwater Monitoring

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

43765
