50698591 Wika 50698591 Ultra High Purity Compact Pressure Transducer Model WUC-10 4-20MA 2-wire Original Swivel Male Nut SS4-VCR-4 X Circular Connector M12X1 4-pin Stainless Steel50698591 Wika 50698591 Ultra High Purity Compact Pressure Transducer Model WUC-10 4-20MA 2-wire Original Swivel Male Nut SS4-VCR-4 X Circular Connector M12X1 4-pin Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

50698591

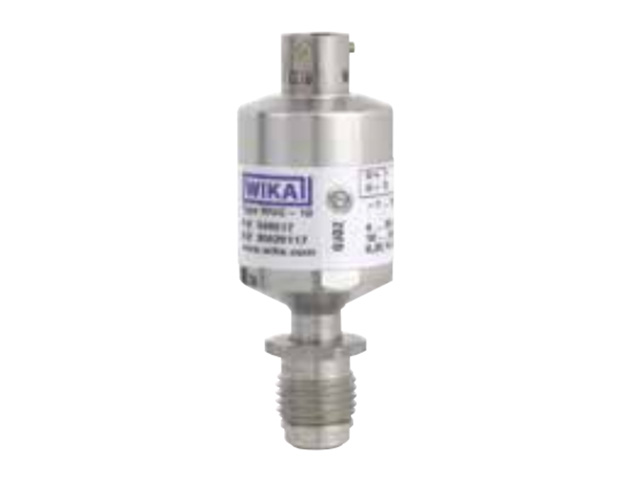

Wika 50698591 Ultra High Purity Compact Pressure Transducer Model WUC-10 4-20MA 2-wire Original Swivel Male Nut SS4-VCR-4 X Circular Connector M12X1 4-pin Stainless Steel

Ultra High Purity Compact Pressure Transducer

Manufacturer Wika
Part Number 50698591
Availability Out of Stock Call to order
UOM EA

Description:
Wika WUC-10 models with its ultra compact design meets the smallest product footprint requirements. The space saving design easily replaces competitive transducers, making it the perfect fit for new equipment and retrofit projects. The highest materials of construction ensure that every WUC-10 model transducer is well suited for use in corrosive or non-corrosive medias. Additionally, because every WUC-10 model transducer comes standard with NEMA4, ATEX, IECEx and FM certifications, it can be confidently installed in indoor or outdoor systems as well as in non-flammable or potentially flammable areas. The sealed side access zero point adjustment prevents entry of moisture when used outdoors. The transducer’s non-incendive ATEX, IECEx and FM approvals for potentially flammable environments provide essential safeguards for life and product safety. Carrying a T6 temperature class designator, WUC-10 model transducers easily meet the measurement requirements for low, spontaneous ignition temperature medias such as phosphine (PH3) and silane (SiH4).
Email this page to a friend


Product Attributes


UOM:
EA
Process Connection:
Original Swivel Male Nut SS4-VCR-4
Electrical Connection:
Circular Connector M12X1 4-pin
Case Material:
304 Stainless steel
Range:
-30INHG/+100PSI
Transmitter Output:
4-20MA, 2-wire
Supply Voltage:
10-30 VDC
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
WUC-10
Wetted Parts:
UNS R30003 and 316L VIM/VAR Stainless Steel
Non-linearity:
0.1% BFSL
Accuracy:
0.2% RSS
Manufacturer:
Wika
Application:
Semiconductor, flat panel display and photovoltaic industries. Specialty and bulk gas distribution systems (Gas Sticks, Gas Panels, VMBs).
