Back to Product: Gems 52100 LS-52100 Series Level Switch
Click Image to Zoom
52100 Gems 52100 LS-52100 Series Level Switch52100 Gems 52100 LS-52100 Series Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

52100

Gems 52100 LS-52100 Series Level Switch

Manufacturer Gems Sensors
Part Number 52100
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 4-5 weeks.
UOM EA
Price: $503.22
Qty:
Description:

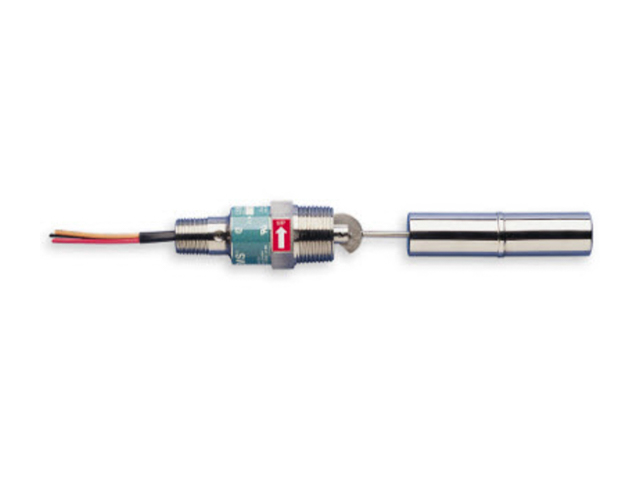

Gems 52100 LS-52100 Series Level Switch



LS-52100 Series Single-Point Level Switch solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks. Installation is through the tank side at the detection point. Rugged, all stainless-steel unit offers broad chemical compatibility at temperatures to 300°F (149°C). Explosion-proof models are available contact us for details.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Stem Material:
316 Stainless Steel
Float Material:
304 Stainless Steel
Mounting Size:
1" NPT Male
Switch Type:
SPDT (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-52100
Float Diameter:
1"
Mounting Configuration:
Horizontal
Switch Operation:
Selectable
Electrical Termination:
18 AWG, 24" long, Polymeric leads
Size:
Large
Maximum Temperature:
300° F
Minimum Liquid SG:
0.85
Actuation Level:
1"
Minimum Temperature:
-40° F
Sensor Type:
Float Type
Materials of Construction:
Alloy
Wetted Materials:
316 Stainless Steel, 304 Stainless Steel, 430 Stainless Steel, Teflon, Ceramic
Maximum pressure:
500 PSI
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, CSA Listed, CE
Markets:
Alt Energy, General Industry, Marine, Oil & Gas, Power Generation, Process, Process Tank Gauging, Water & Wastewater
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Machine Tools, Shipbuilders, Process Tanks, Extraction & Distribution Equipment, Marine Vessels, Power Generating Facilities

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 52100

Product Resources
Gems Catalog
Gems Catalog
