Back to Product: Gems 55690 LS-2050 Series Level Switch
Click Image to Zoom
55690 Gems 55690 LS-2050 Series Level Switch55690 Gems 55690 LS-2050 Series Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

55690

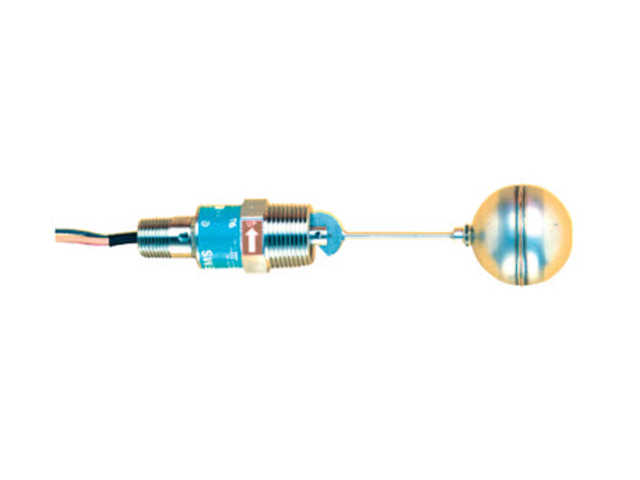

Gems 55690 LS-2050 Series Level Switch

Manufacturer Gems Sensors
Part Number 55690
Availability Out of Stock Discontinued
UOM EA
Description:
Gems 55690 LS-2050 Series Level Switch



LS-2050 Series Single-Point Level Switches solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks. Installation is through the tank side at the detection point. LS-2050 Series switches are ideal for pressures up to 900 psig (62 bar) and temperatures up to 300°F (149°C).
Email this page to a friend

Product Attributes


UOM:
EA
Stem Material:
316 Stainless Steel
Float Material:
316 Stainless Steel
Mounting Size:
1" NPT Male
Switch Type:
SPDT (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-2050
Float Diameter:
2'
Mounting Configuration:
Horizontal
Switch Operation:
Selectable
Electrical Termination:
Feraloy Junction
Size:
Large
Sensor Type:
Float Type
Maximum Temperature:
300° F
Actuation Level:
1"
Minimum Liquid SG:
0.9
Wetted Materials:
316 Stainless Steel, Teflon, Ceramic
Materials of Construction:
Alloy
Minimum Temperature:
-40° F
Maximum pressure:
900 PSI
Manufacturer:
Gems Sensors
Markets:
Alt Energy, General Industry, Marine, Oil & Gas, Power Generation, Process, Process Tank Gauging, Water & Wastewater
Safety/Certifications:
UL Recognized, CSA Listed, CE, Explosion Proof
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Machine Tools, Shipbuilders, Process Tanks, Extraction & Distribution Equipment, Marine Vessels, Power Generating Facilities

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 55690

Product Resources
Gems Catalog
Gems Catalog
