Back to Product: Racor FBO-14 Fuel Filter Dispensing Assembly - FBO-14-DPL

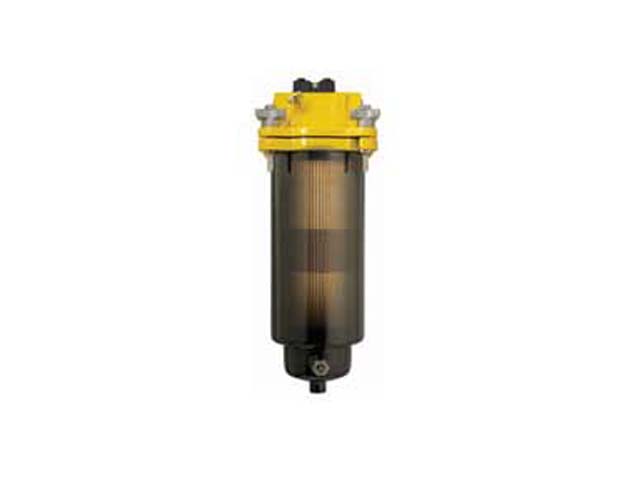

Click Image to Zoom
FBO-14-DPL Racor FBO-14 Fuel Filter Dispensing Assembly - FBO-14-DPLFBO-14-DPL Racor FBO-14 Fuel Filter Dispensing Assembly - FBO-14-DPL
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

FBO-14-DPL

Racor FBO-14 Fuel Filter Dispensing Assembly - FBO-14-DPL

Manufacturer Parker
Part Number FBO-14-DPL
Availability In Stock (0) In Stock. Ships in 1-2 days from RG.
(1) In Stock. Ships in 2-3 days from Partner Direct. Shipping from this inventory may incur increased pricing and/or shipping costs from multiple locations.
Out of Stock quantities: Call for availability.
UOM EA
Price: $886.89
Qty:
Description:
The Parker Racor FBO-14-DPL assembly features an aluminum die-cast filter head with four hand operated bolts and a locking ring collar. The filter housing rotates into the locking ring collar, and is simple and easy to remove without undue mess or difficulty by a single technician. The slotted locking ring collar allows maintenance personnel to hand-loosen the four collar bolts, rotate and lower the bowl assembly for element change outs. With a new element installed, simply raise the bowl, rotate into position on the locking ring, then hand tighten evenly. The closure hardware consists of stainless steel nuts, bolts and washers with metal hand knobs for ease of maintenance. This unit features a Differential Pressure Gauge with a Liquid Sight Glass.
Email this page to a friend

Product Attributes


UOM:
EA
Filter rating:
N/A
Replacement Element:
FBO 60336, FBO 60361, FBO 60337, FBO 60356, FBO 60338, FBO 60339, FBO 60340, FBO 60357, FBO 60341, FBO 60342, FBO 60343, FBO 60358, FBO 60344
Dimensions:
Height 22.3 in. (56.6 cm) Depth 8.6 in. (21.8 cm) Width 8.6 in. (21.8 cm)
Weight:
23 lb. (10.4 kg)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
FBO-14
Configuration Type:
Fuel Filter Dispensing Assembly
Inch/Metric:
Inch
Port Size:
1 1/2" NPT
Pressure Rating:
150 psi (10.3 bar) @ 240 F (115 C)
Max. Flow Rate Diesel:
25-30 gpm (94.6-113.6 lpm)
Max. Flow Rate Gasoline:
65-75 gpm (246.1-283.9 lpm)
Max. Flow Rate Jet Fuel:
50-60 gpm (189.3-227.1 lpm)
Max. Flow Rate Kerosene:
30-50 gpm (114-189 lpm)
Parker Group:
Filtration
Parker Division:
Racor
Operating Temperature:
-40 F to 255 F (-40 C to 124 C)
Maximum Fuel Temperature:
190 F (88 C)
Differential Pressure Gauge:
Included
Sight Glass:
Included
Drain Valve:
Included
Element:
Order Separately
Mounting Bracket:
No
Fuel Heater:
No
Water Sensor:
No
Change Delta P:
No
Clean Delta P:
Varies w/fluid and flow rate.
Application:
Mobile refuelers, refueling cabinets, diesel fuel dispensing pumps, large diesel engines., bulk fuel handling, fuel transfer and other higher flow applications.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: FBO14DPL
