FC703-2 FC703 Threaded Port Meter Out Metal Flow Control – NPTFC703-2 FC703 Threaded Port Meter Out Metal Flow Control – NPT
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

FC703-2

FC703 Threaded Port Meter Out Metal Flow Control – NPT

Manufacturer Parker
Part Number FC703-2
Availability In Stock (0) In Stock. Ships in 1-2 days from RG.
(28) In Stock. Ships in 2-3 days from Partner Direct. Shipping from this inventory may incur increased pricing and/or shipping costs from multiple locations.
Out of Stock quantities available in 4-5 weeks.
UOM EA
Price: $66.96
Qty:
Description:

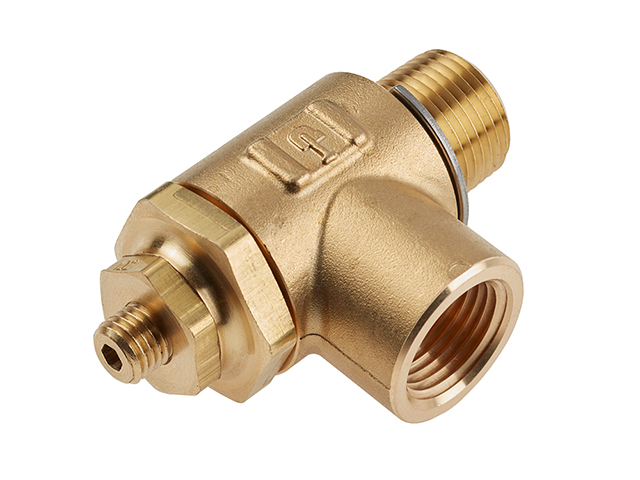

The Right Angle Flow Control is an ideal solution to cylinder speed control where space is at a premium. Costly fittings, connections and piping expenses can be eliminated because the valve can rotate 360°, the piping alignment can be in any direction. It then locks into place. Install by threading male end directly into cylinder port. The free-flow and metered-flow direction is automatically predetermined. Free-flow direction is into cylinder and metered-flow is out of the cylinder. Flow is adjusted with an Allen wrench and locked with nut.
Email this page to a friend

Product Attributes


UOM:
EA
Thread 1:
1/8 NPT
Material:
Brass
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Flow Control
Series:
FC703
Pressure Range:
15 to 150 psi
Configuration Type:
Female to Male
Configuration Sub-Type:
Right Angle
Inch/Metric:
Inch
Thread 1 Type:
NPT
Parker Group:
Fluid Connector
Parker Division:
Fluid Systems Connector (Brass Products)
Operating Temperature:
0˚ to +200˚F
Specific Application:
Robotic Welding, End-of-Arm Tooling, Factory Automation, Automotive Assembly, Packaging
Compatible Tubing:
Polyethylene, 95FR, Polyurethane 95 Durometer Shore A, Semi-rigid Nylon, FEP Fluoropolymer

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: FC7032
