Back to Product: Racor High Pressure Gas Fuel Filter/Coalescer - FFC-114
Click Image to Zoom
FFC-114 Racor High Pressure Gas Fuel Filter/Coalescer - FFC-114FFC-114 Racor High Pressure Gas Fuel Filter/Coalescer - FFC-114
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

FFC-114

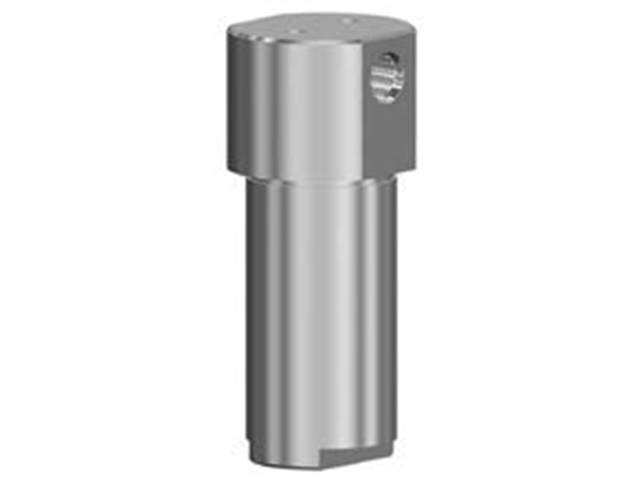

Racor High Pressure Gas Fuel Filter/Coalescer - FFC-114

Manufacturer Parker
Part Number FFC-114
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $1,285.86
Qty:
Description:
Parker Racor High Pressure Gas Fuel Filter/Coalescer - FFC-114 includes a media grade 10, element, stainless steel bowl, internals, fluorocarbon seals, and 1/2" NPT connections. Its robust 303 stainless steel construction and 3600 PSIG design pressure and relatively light weight combine to provide a unit that will withstand the harsh operating environments found on heavy duty vehicles like buses and trucks.
Email this page to a friend

Product Attributes


UOM:
EA
Element Type:
Coalescer
Filter rating:
Grade 6
Maximum Flow:
50 scfm (1416 lpm)
Replacement Element:
CLS47133-02
Weight:
5.3 lbs (2.3 kg)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
FFC
Configuration Type:
Fuel Filter/Coalescer
Inch/Metric:
Inch
Port Size:
1/2" NPT
Bowl Type:
Stainless steel - standard
Diameter:
3.0 Inch (7.6 cm)
Length:
7.0 Inch (17.8 cm)
Head Type:
Stainless steel
Pressure Rating:
3,600 psi (248.2 bar)
Parker Division:
Racor
Clean Pressure Drop:
1.7 psi (0.12 bar)
Parker Group:
Filtration
Seals:
Fluorocarbon
Internals Type:
Stainless steel
Operating Temperature:
-40 F to 221 F (-40 C to 105 C)
Application:
Many Compressed Natural Gas (CNG) powered commuter vehicles, such as shuttle buses, taxis or vans, rely on FFC filter to protect contaminants from fouling fuel injector systems.
Specification:
ECE 110R Approved

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: FFC114

Product Resources
Racor Low and High Pressure Gas FIlters
Racor Low and High Pressure Gas FIlters
