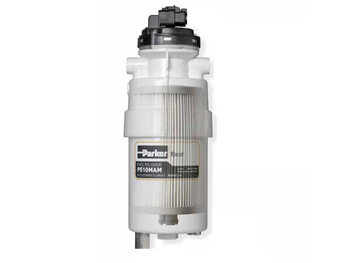

P510MAM Racor Marine Diesel Filter Pump/Fuel Water Separator - Fuel Polisher/Conditioning Module - P50 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

P510MAM

Racor Marine Diesel Filter Pump/Fuel Water Separator - Fuel Polisher/Conditioning Module - P50 Series

Manufacturer Parker
Part Number P510MAM
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $1,111.19
Qty:

Description:
The Racor P Series Diesel Fuel Polisher/Conditioning Module was developed to protect all new and existing diesel fuel injection systems. The innovative and modular design of the P Series incorporates all of the low pressure fuel components required by the latest generation of electronically-controlled fuel injection systems in a single package: A powerful brushless 12/24V DC motor, a high efficiency fuel filter/water separator, a contaminant collection metal bowl and no pre-heater. An electrical harness and control module for pump operation and stainless water-in-fuel detection sensor are also included. The P Series style modules contain high performance Aquabloc® II media in a cartridge design, which provides superior filtration while remaining environmentally friendly and incinerable. All Racor filter materials and seals are compatible with ultra-low sulfur diesel and biofuels up to B20 blend.
Email this page to a friend


Product Attributes


UOM:
EA
Filter rating:
10 micron
Bowl Type:
Aluminum
Maximum Flow:
60 gph (220 lph)
Replacement Element:
R58065-10
Water Sensor:
Stainless steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Width:
4.5 Inch (11.4 cm)
Trade Name:
Aquabloc®
Series:
P5
Configuration Type:
Fuel Polisher/Conditioning Module
Inch/Metric:
Inch
Port Size:
M16-1.5 ORB
Height:
11.5 Inch (29.2 cm)
Depth:
5.2 Inch (13.2 cm)
Number of Ports:
2 (1-inlet,1-outlet)
Operating Temperature:
-40 F to 255 F (-40 C to 124 C)
Maximum Fuel Temperature:
190 F (88 C)
Parker Group:
Filtration
Parker Division:
Racor
Clean Pressure Drop:
0.8 psi (0.06 bar)
Primer Pump:
12/24 vdc Brushless, Continuous duty
Heater:
None
Application:
Fuel tank fuel polishing system
