Back to Product: Gems PS61-50-6MSZ-B-SP-G-FS600PSIF PS61 Series Pressure Switch
Click Image to Zoom

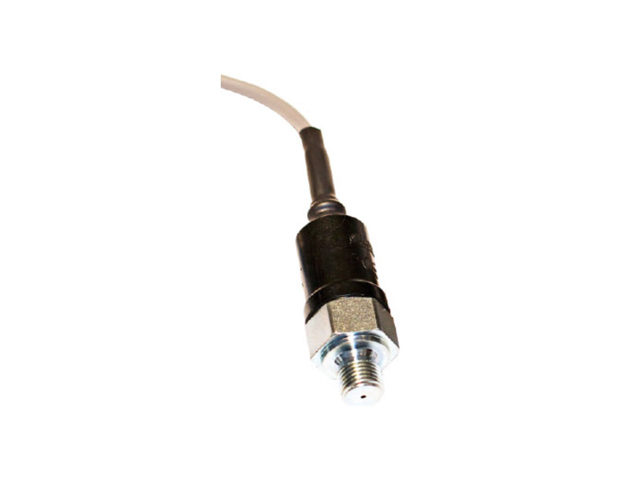

PS61-50-6MSZ-B-SP-G-FS600PSIF Gems PS61-50-6MSZ-B-SP-G-FS600PSIF PS61 Series Pressure SwitchPS61-50-6MSZ-B-SP-G-FS600PSIF Gems PS61-50-6MSZ-B-SP-G-FS600PSIF PS61 Series Pressure Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

PS61-50-6MSZ-B-SP-G-FS600PSIF

Gems PS61-50-6MSZ-B-SP-G-FS600PSIF PS61 Series Pressure Switch

Manufacturer Gems Sensors
Part Number PS61-50-6MSZ-B-SP-G-FS600PSIF
Availability Out of Stock Call to order
UOM EA
Call for availability
Description:
Gems PS61-50-6MSZ-B-SP-G-FS600PSIF PS61 Series Pressure Switch



PS61 Series Pressure Switches are designed for OEM applications and are available with enhanced ingress protection (IP) to IPX7, IPX9K, and IP6KX and integral electrical connections. PS61 Pressure Switches can withstand temperatures up to 250°F (121°C).These subminiature pressure switches are suitable for a wide range of hydraulic and pneumatic applications including medical and general industry.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 10 pieces for this item
Pressure Range:
275-800 psi
Switch Type:
SPST
Circuit Condition:
Normally Closed
Electrical Termination:
Spade Terminals
Switch Rating:
100 VA
Fitting Type:
9/16"-18 SAE Male
Fitting Material:
12L14 Zinc-Plated Steel
Options:
Gold Contacts, Factory Set: 600PSI Falling
Burst Pressure:
9000 psi
Proof Pressure:
6000 psi
Deadband:
15% of setting
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Pressure Switches & Transducers
Component Sub-Type:
General Purpose Pressure Switches
Series:
PS61
Repeatability +/-:
+/-8 psi +3% of setting
Diaphragm material:
Nitrile
Maximum Temperature:
250° F
Minimum Temperature:
-22° F
Manufacturer:
Gems Sensors
Safety/Certifications:
CE
Markets:
Agricultural, General Industry, OHV & Specialty Vehicle, Power Generation, Transportation
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Machinery, Agricultural Equipment, Elevators, Fire Suppression, Test & Measurement, Off Highway and Construction Vehicles, Mining, Generators, Wind Mills,Specialty Vehicles

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: PS61506MSZBSPGFS600PSIF
