R2103NX R2 Series

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

R2103NX

R2 Series

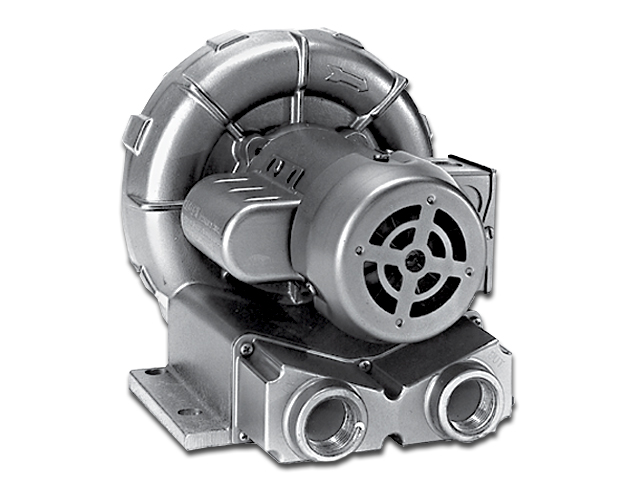

Gast Regenair® Regenerative Blower

Manufacturer	Gast
Part Number	R2103NX
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 2-3 weeks.
UOM	EA

Price: $1,033.00

Qty:

Description:

Features - Rugged construction, low maintenance, oilless operation, UL and CSA approved TEFC motors with permanently sealed ball bearings, automatic restart thermal protection on single phase motors, aluminum blower housing, impeller, and cover. Can be operated with no air flow through unit and be mounted in any plane, inlet and outlet have internal muffling.

Email this page to a friend

Product Attributes

UOM:

Amps (60/50 Hz):

3.8/2.0-1.9 / 3.8/1.9

Power rating (60/50 Hz):

.33 hp (0.25 kw) / .20 hp (0.15 kw)

Weight:

21 lbs (9.5 kg)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Trade Name:

Regenair®

Series:

Inch/Metric:

Inch

Maximum pressure:

39 InH2O (60 Hz) 30 InH2O (50 Hz)

Maximum Vacuum:

35 InH2O (60 Hz) 25 InH2O (50 Hz)

Maximum air flow:

42 cfm (60 Hz) 33 cfm (50 Hz)

Motor enclosure:

TEFC

Voltage (60/50 Hz):

115/208-230-1 / 110/220-1

Starting Amps (60/50 Hz):

9.3 @ 230V / 17.6 @ 220V

Insulation Class:

Recommended NEMA Starter Size:

00/00

Manufacturer:

Gast

Application:

Air tables, solution and media agitation, vacuum hold-down and pickup, air blow-off, soil and ground water remediation, carton forming and packaging, lab filtration, sewage aeration, materials handling, aquaculture, pneumatic conveying.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Accessories

	Part #	Availability
+	AJ121B	Out of Stock - Lead Time Required
+	AJ126B	Out of Stock - Lead Time Required
+	AJ151B	Out of Stock - Lead Time Required
+	AJ496	Out of Stock - Lead Time Required
+	AJ497	In Stock
+	AV460	Out of Stock - Lead Time Required

UOM	Accessory type	Used with	Country of Origin (COO)	Harmonized Tariff (HTS)
EA	Muffler	R1, R2	Special request, please call for COO	Special request, please call for HTS
EA	Inlet Pressure Filter	R1, R2	Special request, please call for COO	Special request, please call for HTS
EA	Inline Vacuum Filter	R2	Special request, please call for COO	Special request, please call for HTS
EA	Pressure Gauge	R1, R2, R3 R4	Special request, please call for COO	Special request, please call for HTS
EA	Vacuum Gauge	R1, R2, R3, R4, R4H, R4P, R5, R7, R7P, R7S, R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS
EA	Inline Vacuum Filter	R1, R2	Special request, please call for COO	Special request, please call for HTS

AJ121B

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Muffler

R1, R2

Special request, please call for COO

Special request, please call for HTS

AJ126B

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inlet Pressure Filter

R1, R2

Special request, please call for COO

Special request, please call for HTS

AJ151B

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inline Vacuum Filter

Special request, please call for COO

Special request, please call for HTS

AJ496

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Pressure Gauge

R1, R2, R3 R4

Special request, please call for COO

Special request, please call for HTS

AJ497

In Stock

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Vacuum Gauge

R1, R2, R3, R4, R4H, R4P, R5, R7, R7P, R7S, R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS

AV460

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inline Vacuum Filter

R1, R2

Special request, please call for COO

Special request, please call for HTS

Replacement Parts

	Part #	Availability	Price
+	K900	Out of Stock - Lead Time Required

UOM	Replacement part type	Used with	Country of Origin (COO)	Harmonized Tariff (HTS)
EA	Foam Replacement Kit	R2	Special request, please call for COO	Special request, please call for HTS

K900

Out of Stock - Lead Time Required

View

UOM:

Replacement part type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Foam Replacement Kit

Special request, please call for COO

Special request, please call for HTS

Part Number Tags:

4Z750,R2103,R2103NX
