R7100R-50 R7 Series Explosion-Proof

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

R7100R-50

R7 Series Explosion-Proof

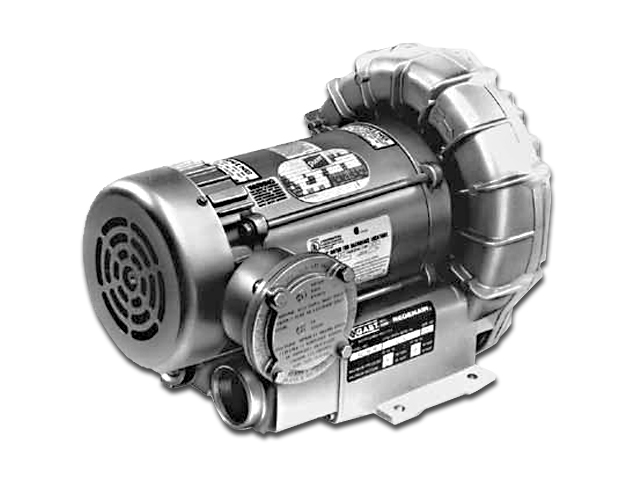

Gast Regenair® Explosion-Proof Regenerative Blower

Manufacturer	Gast
Part Number	R7100R-50
Availability	Out of Stock Discontinued
UOM	EA

Description:

Features - UL & CSA approved multi-voltage motors, approved thermal protection, motors classified as Explosion Proof Div 1 & 2, for Group D explosive atmospheres, carry full rated load at temperatures below Class B motor insulation limits, Class F motor insulation used in motors larger than 1 HP, conform to NEMA frame sizes; enclosures conform to IP54, aluminum impeller, housing, cover.

Email this page to a friend

Product Attributes

UOM:

Amps (60/50 Hz):

26.5-24/12 / 23.2-21.0/11.6-10.9

Power rating (60/50 Hz):

10 hp (7.5 kw) / 8 hp (6.0 kw)

Weight:

297 lbs (134 kg)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Trade Name:

Regenair®

Series:

R7 Explosion-Proof

Inch/Metric:

Inch

Maximum pressure:

100 InH2O (60 Hz) 90 InH2O (50 Hz)

Maximum Vacuum:

110 InH2O (60 Hz) 85 InH2O (50 Hz)

Maximum air flow:

425 cfm (60 Hz) 350 cfm (50 Hz)

Starting Amps (60/50 Hz):

105 @ 460V / n/a

Voltage (60/50 Hz):

208-230/460-3 / 190-220/380-415-3

Insulation Class:

Recommended NEMA Starter Size:

2/1

Motor enclosure:

XPFC

Manufacturer:

Gast

Application:

Air tables, solution and media agitation, vacuum hold-down and pickup, air blow-off, soil and ground water remediation, carton forming and packaging, lab filtration, sewage aeration, materials handling, aquaculture, pneumatic conveying.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Accessories

	Part #	Availability
+	AE133	Out of Stock - Lead Time Required
+	AE134	Out of Stock - Lead Time Required
+	AJ126G	Out of Stock - Lead Time Required
+	AJ151H	Out of Stock - Lead Time Required

UOM	Accessory type	Used with	Country of Origin (COO)	Harmonized Tariff (HTS)
EA	Pressure Gauge	R6PP, R6P, R5, R4P, R6, R7P, R9, R9P	Special request, please call for COO	Special request, please call for HTS
EA	Vacuum Gauge	R4P, R6PP, R6PS, R6P, R4M, R6, R7, R7S, R7P, R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS
EA	Inlet Pressure Filter	R7, R7P	Special request, please call for COO	Special request, please call for HTS
EA	Inline Vacuum Filter	R6PP, R6PS, R7	Special request, please call for COO	Special request, please call for HTS

AE133

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Pressure Gauge

R6PP, R6P, R5, R4P, R6, R7P, R9, R9P

Special request, please call for COO

Special request, please call for HTS

AE134

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Vacuum Gauge

R4P, R6PP, R6PS, R6P, R4M, R6, R7, R7S, R7P, R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS

AJ126G

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inlet Pressure Filter

R7, R7P

Special request, please call for COO

Special request, please call for HTS

AJ151H

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inline Vacuum Filter

R6PP, R6PS, R7

Special request, please call for COO

Special request, please call for HTS
