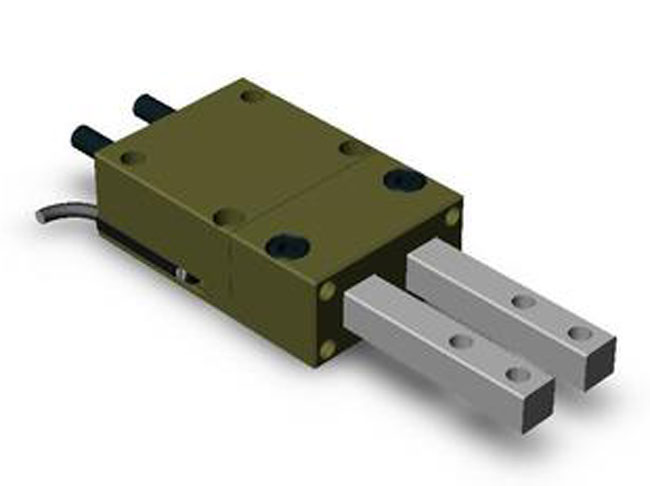

Click Image to Zoom
RFE-11M Destaco Robohand RFE-11M Feed EscapementRFE-11M Destaco Robohand RFE-11M Feed Escapement
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

RFE-11M

Destaco Robohand RFE-11M Feed Escapement

Manufacturer Destaco
Part Number RFE-11M
Availability In Stock (2) In Stock. Ships in 1-2 days from RG.
(0) In Stock. Ships in 2-3 days from Partner Direct. Shipping from this inventory may incur increased pricing and/or shipping costs from multiple locations.
Out of Stock quantities available in 2-3 weeks.
UOM EA
Price: $520.00
Qty:
Description:
Destaco Robohand RFE-11M Feed Escapement

• Sequential part feeding with automatic finger locking mechanism
• Non-rotating square shaft maintains proper finger alignment
• Sealed design with adjustable retract stops
• Only one finger can be retracted at any time
Email this page to a friend

Product Attributes


UOM:
EA
Stroke Length (In):
0.626
Thrust Force (lbsf):
25
Weight:
0.33 lbs
Country of Origin (COO):
United States - Required COO must be noted at time of order
Harmonized Tariff (HTS):
8412.31.0080
Component Type:
Thrusters / Slides
Component Sub-Type:
Feed Escapements
Product Function:
Linear Positioning
Series:
RFE
Max Air Pressure:
100 psi
Imperial or Metric Product:
Metric Version
Max Moment Load (in-lbs):
50
Actuation (Open/Closed) (Sec):
0
Temp Range Standard:
-35° to 80°C (-30° to 180°F)
Temp Range Viton:
-30° to 150°C (-20° to 300°F)
Manufacturer:
Destaco
Markets:
Industrial, Transportation, Food & Packaging, Consumer Goods, Logistics, and Life Sciences
Additional Specifications:
To view a full product information see product resources section on this page
Specific Application:
Part separation, part staging, and conveying timing operations.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
