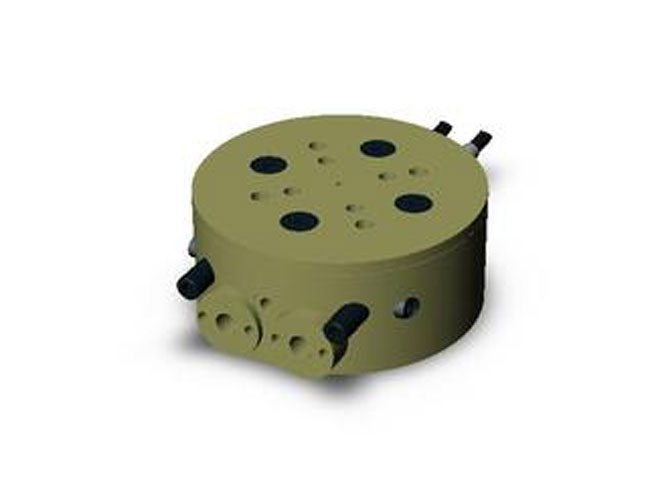

RR-18-90 Destaco Robohand RR-18-90 Light-Duty Rotary Actuator

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

RR-18-90

Destaco Robohand RR-18-90 Light-Duty Rotary Actuator

For High Torque & Tight Space Applications

Manufacturer	Destaco
Part Number	RR-18-90
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 3-4 weeks.
UOM	EA

Price: $1,096.00

Qty:

Description:

Destaco Robohand RR-18-90 Light-Duty Rotary Actuator

• Ultra-thin profile for tight space applications
• Preloaded bearings for high repeatability rotary actuation
• Zero backlash and slip fit dowel pins for precision applications
• Built-in adjustable hard-stops

Email this page to a friend

Product Attributes

UOM:

Bore:

0.5

Payload:

Max Payload Inertia With Shocks (lb-in-sec²):

0.0016

Maximum Torque at 100psi/7bar (in-lb):

6.5

Max Torque Mid-Stroke (in-lbs):

Max Torque End-Stroke (in-lbs):

Degrees of Rotation (Degrees):

90°

Displacement:

0.205

Weight:

0.48 lbs

Country of Origin (COO):

United States - Required COO must be noted at time of order

Harmonized Tariff (HTS):

8412.39.0080

Component Type:

Rotaries

Component Sub-Type:

Rotary Actuators

Product Function:

Rotary Positioning

Series:

Configuration Type:

Flange

Repeatability +/-:

±0.02°

Imperial or Metric Product:

Imperial Version

Over Travel (Degrees):

4°

Actuation (Open/Closed) (Sec):

Temp Range Standard:

-35° to 80°C (-30° to 180°F)

Temp Range Viton:

-30° to 150°C (-20° to 300°F)

Manufacturer:

Destaco

Markets:

Industrial, Transportation, Food & Packaging, Consumer Goods, Logistics, and Life Sciences

Additional Specifications:

To view a full product information see product resources section on this page

Specific Application:

Precision rotary positioning, medical applications, and OEM machines.
