» | Component Type: Industrial Computers |
» | Series: DA-820 |
» | Manufacturer: Moxa |
Part # | Availability | Price/UOM | |
---|---|---|---|
DA-820-C1-SP-HV-T | N/A | Discontinued |
UOM | Additional Specifications | Country of Origin (COO) | Harmonized Tariff (HTS) |
---|---|---|---|
EA | To view a full product datasheet see product resources section on this page | Special request, please call for COO | Special request, please call for HTS |
UOM: Additional Specifications: Country of Origin (COO): Harmonized Tariff (HTS): |
EA To view a full product datasheet see product resources section on this page Special request, please call for COO Special request, please call for HTS |

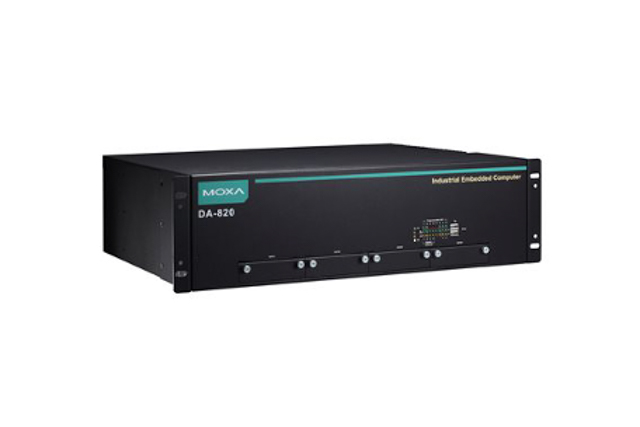

The DA-820 is based on the Intel® Core™ Celeron, i3, and i7 CPU and QM77 chipset, which supports the standard x86 OS and comes with 2 VGA ports, 6 USB ports, 4 Gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The DA-820 is equipped with a 4 SATA disk interface and supports RAID 0/1/5/10 functionality. The DA-820 is specifically designed for substation applications that require precise time synchronization and adherence to the IEC 61850-3 standards. The flexible design makes the DA-820 suitable for local SCADA, environmental monitoring, video surveillance, protocol conversion, and PRP/HSR redundancy applications.
The DA-820 complies with the IEC 60255 standards to enable the protection of electrical relays in a smart substation. The housing is a standard 3U, 19-inch wide, rack-mounted rugged enclosure. The DA-820’s Smart Recovery function makes it easy to troubleshoot system software errors on computers to minimize downtime. Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters.
