Department: HydraulicsX
Product Type: ValvesX
Product Sub-Type: Flow Control ValvesX
Product: Colorflow Metering Valve - BSPPX

Max Flow

0.1 GPM (0.28 LPM) (1) 0.5 GPM (2 LPM) (2) 2.8 GPM (11 LPM) (2) 5 GPM (19 LPM) (2) 8 GPM (30 LPM) (2) 15 GPM (57 LPM) (3) 25 GPM (95 LPM) (1) 40 GPM (151 LPM) (1)

Max Pressure

207 Bar (3000 PSI) (1) 345 Bar (5000 PSI) (11) 413 Bar (6000 PSI) (2)

Thread 1

1/8 BSPP (1) 1/4 BSPP (5) 3/8 BSPP (3) 1/2 BSPP (3) 3/4 BSPP (1) 1 BSPP (1)

Effective Control Flow CV Factor

0.032 (1) 0.0326 (1) 0.039 (1) 0.186 (2) 0.493 (2) 1.294 (2) 1.93 (3) 3.205 (1) 3.829 (1)

Effective Orifice Area - Control Flow (in2)

0.0014 (1) 0.0017 (1) 0.0027 (1) 0.0081 (2) 0.0216 (2) 0.0567 (2) 0.0845 (3) 0.14 (1) 0.1675 (1)

Material Poppet/Stem Seals

Fluorocarbon (5) Nitrile (9)

Needle Option

Fine (2) Micro-fine (3)

Operating Temperature

-40°F to +250°F (9) -15°F to +400°F (5)
Click Image to Zoom

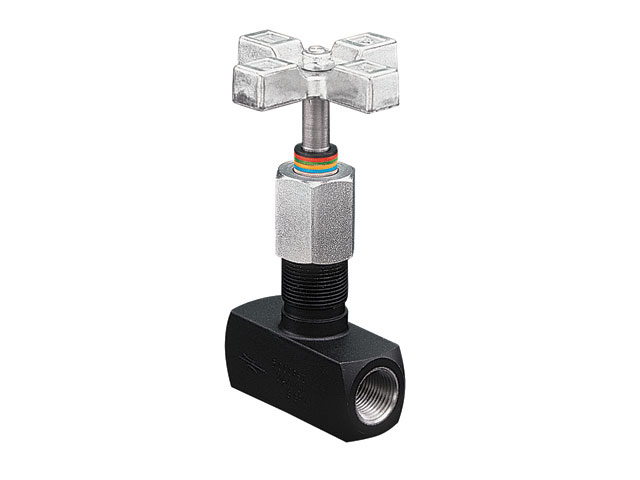

Colorflow Metering Valve - BSPPColorflow Metering Valve - BSPP

Colorflow Metering Valve - BSPP

Parker Colorflow Metering Valve - BSPP Ports

Email this page to a friend


Showing 1 - 14 of 14
Part # Availability Price/UOM
++ 9MV400S Out of Stock - Lead Time Required $142.01
++ 9MV600S Out of Stock - Lead Time Required $175.59
++ 9MV800S Out of Stock - Lead Time Required $200.54
++ 9MV861S Out of Stock - Lead Time Required $323.35
++ 9MV1600S Out of Stock - Lead Time Required $536.36
++ 9MV200S3 Out of Stock - Lead Time Required $250.43
++ 9MV400S2 Out of Stock - Lead Time Required $198.62
++ 9MV400S2-V Out of Stock - Lead Time Required $215.89
++ 9MV400S3 Out of Stock - Lead Time Required $227.40
++ 9MV400S-V Out of Stock - Lead Time Required $159.28
++ 9MV600S3 Out of Stock - Lead Time Required $118.40
++ 9MV600S-V Out of Stock - Lead Time Required $193.82
9MV861S-V N/A Call to Order
++ 9MV1200S-V Out of Stock - Lead Time Required $303.20
UOM Max Flow Thread 1 Effective Orifice Area - Control Flow (in2) Effective Control Flow CV Factor Material Poppet/Stem Seals Material Country of Origin (COO) Harmonized Tariff (HTS)
EA 5 GPM (19 LPM) 1/4 BSPP 0.0216 0.493 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 8 GPM (30 LPM) 3/8 BSPP 0.0567 1.294 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 15 GPM (57 LPM) 1/2 BSPP 0.0845 1.93 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 15 GPM (57 LPM) 1/2 BSPP 0.0845 1.93 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 40 GPM (151 LPM) 1 BSPP 0.1675 3.829 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 0.5 GPM (2 LPM) 1/8 BSPP 0.0014 0.032 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 2.8 GPM (11 LPM) 1/4 BSPP 0.0081 0.186 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 2.8 GPM (11 LPM) 1/4 BSPP 0.0081 0.186 Fluorocarbon Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 0.5 GPM (2 LPM) 1/4 BSPP 0.0017 0.039 Nitrile Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 5 GPM (19 LPM) 1/4 BSPP 0.0216 0.493 Fluorocarbon Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 0.1 GPM (0.28 LPM) 3/8 BSPP 0.0027 0.0326 Nitrile Steel Special request, please call for COO Special request, please call for HTS
EA 8 GPM (30 LPM) 3/8 BSPP 0.0567 1.294 Fluorocarbon Steel United States - Required COO must be noted at time of order 8481.20.0040
EA 15 GPM (57 LPM) 1/2 BSPP 0.0845 1.93 Fluorocarbon Steel Special request, please call for COO Special request, please call for HTS
EA 25 GPM (95 LPM) 3/4 BSPP 0.14 3.205 Fluorocarbon Steel United States - Required COO must be noted at time of order 8481.20.0040
9MV400S
Out of Stock - Lead Time Required
$142.01
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

5 GPM (19 LPM)

1/4 BSPP

0.0216

0.493

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV600S
Out of Stock - Lead Time Required
$175.59
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

8 GPM (30 LPM)

3/8 BSPP

0.0567

1.294

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV800S
Out of Stock - Lead Time Required
$200.54
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

15 GPM (57 LPM)

1/2 BSPP

0.0845

1.93

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV861S
Out of Stock - Lead Time Required
$323.35
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

15 GPM (57 LPM)

1/2 BSPP

0.0845

1.93

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV1600S
Out of Stock - Lead Time Required
$536.36
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

40 GPM (151 LPM)

1 BSPP

0.1675

3.829

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV200S3
Out of Stock - Lead Time Required
$250.43
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

0.5 GPM (2 LPM)

1/8 BSPP

0.0014

0.032

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV400S2
Out of Stock - Lead Time Required
$198.62
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

2.8 GPM (11 LPM)

1/4 BSPP

0.0081

0.186

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV400S2-V
Out of Stock - Lead Time Required
$215.89
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

2.8 GPM (11 LPM)

1/4 BSPP

0.0081

0.186

Fluorocarbon

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV400S3
Out of Stock - Lead Time Required
$227.40
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

0.5 GPM (2 LPM)

1/4 BSPP

0.0017

0.039

Nitrile

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV400S-V
Out of Stock - Lead Time Required
$159.28
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

5 GPM (19 LPM)

1/4 BSPP

0.0216

0.493

Fluorocarbon

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV600S3
Out of Stock - Lead Time Required
$118.40
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

0.1 GPM (0.28 LPM)

3/8 BSPP

0.0027

0.0326

Nitrile

Steel

Special request, please call for COO

Special request, please call for HTS
9MV600S-V
Out of Stock - Lead Time Required
$193.82
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

8 GPM (30 LPM)

3/8 BSPP

0.0567

1.294

Fluorocarbon

Steel

United States - Required COO must be noted at time of order

8481.20.0040
9MV861S-V
N/A
Call to Order
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

15 GPM (57 LPM)

1/2 BSPP

0.0845

1.93

Fluorocarbon

Steel

Special request, please call for COO

Special request, please call for HTS
9MV1200S-V
Out of Stock - Lead Time Required
$303.20
View

UOM:

Max Flow:

Thread 1:

Effective Orifice Area - Control Flow (in2):

Effective Control Flow CV Factor:

Material Poppet/Stem Seals:

Material:

Country of Origin (COO):

Harmonized Tariff (HTS):

EA

25 GPM (95 LPM)

3/4 BSPP

0.14

3.205

Fluorocarbon

Steel

United States - Required COO must be noted at time of order

8481.20.0040
Showing 1 - 14 of 14
