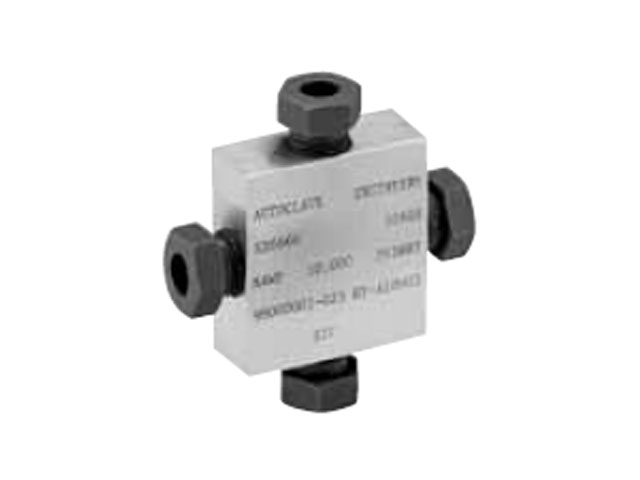

Autoclave Engineers Low Pressure Cross FittingAutoclave Engineers Low Pressure Cross Fitting

Autoclave Engineers Low Pressure Cross Fitting

Parker Autoclave Engineers Low Pressure Cross Fitting

Email this page to a friend


Showing 1 - 4 of 4
Part # Availability Price/UOM
SX2222 N/A Call to Order
++ SX4444 Lead Time Required $83.00
++ SX6666 Lead Time Required $169.40
++ SX8888 Lead Time Required $163.80
UOM Connection Type Tubing O.D. Minimum Opening Material
EA W125 1/8 Inch (3.18mm) 0.094 Inch (2.39mm) 316 Stainless steel
EA SW250 1/4 Inch (6.35mm) 0.188 Inch (4.78mm) 316 Stainless steel
EA SW375 3/8 Inch (9.53mm) 0.250 Inch (6.35mm) 316 Stainless steel
EA SW500 1/2 Inch (12.70mm) 0.375 Inch (9.53mm) 316 Stainless steel
SX2222
N/A
Call to Order

UOM:

Connection Type:

Tubing O.D.:

Minimum Opening:

Material:

EA

W125

1/8 Inch (3.18mm)

0.094 Inch (2.39mm)

316 Stainless steel

SX4444
Lead Time Required
$83.00

UOM:

Connection Type:

Tubing O.D.:

Minimum Opening:

Material:

EA

SW250

1/4 Inch (6.35mm)

0.188 Inch (4.78mm)

316 Stainless steel

SX6666
Lead Time Required
$169.40

UOM:

Connection Type:

Tubing O.D.:

Minimum Opening:

Material:

EA

SW375

3/8 Inch (9.53mm)

0.250 Inch (6.35mm)

316 Stainless steel

SX8888
Lead Time Required
$163.80

UOM:

Connection Type:

Tubing O.D.:

Minimum Opening:

Material:

EA

SW500

1/2 Inch (12.70mm)

0.375 Inch (9.53mm)

316 Stainless steel

Showing 1 - 4 of 4
Parker Autoclave Engineers Low Pressure Cross Fittings are designed for use with low pressure valves and tubing. These fittings feature improved SpeedBite compression connections with larger orifices for excellent flow capabilities. All fittings are supplied complete with appropriate glands and compression sleeves.

Application: In the key markets of chemical & petrochemical, research, oil & gas industries.
