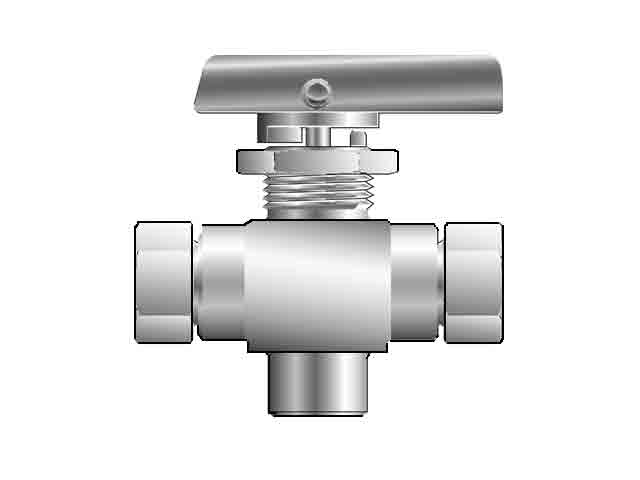

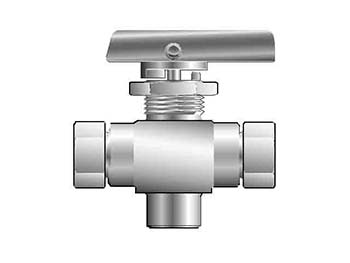

4A-HB4XPKR-EPR-SSP-C3 Ball Valve - Three-way - HB4A-HB4XPKR-EPR-SSP-C3 Ball Valve - Three-way - HB
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

4A-HB4XPKR-EPR-SSP-C3

Ball Valve - Three-way - HB

Parker Ball Valve - Three-way - HB Series

Manufacturer Parker
Part Number 4A-HB4XPKR-EPR-SSP-C3
Availability Out of Stock Call to order
UOM EA

Description:
Parker High Pressure HB4 Series Ball Valves provide reliable shut-off or switching functions. The upper and lower trunnion bearings enhance the resistance of the trunnions against seizure, and increase the valve life in extreme applications.
Email this page to a friend


Product Attributes


UOM:
EA
Port 1:
1/4" A-LOK compression
Port 2:
1/4" A-LOK compression
Port 3:
1/4" A-LOK compression
Material - Seats:
PEEK polyetheretherketone
Material - Seals:
Ethylene propylene rubber
Material:
Stainless Steel
Trade Name:
A-LOKĀ®
Valve Type:
Ball Valve
Series:
HB4X
Configuration Type:
3-way
Inch/Metric:
Inch
Connection Type:
Double ferrule compression
CV Factor:
0.62
Pressure Rating:
10,000 psig (689 bar) CWP
Parker Division:
Instrumentation Products
Parker Group:
Instrumentation
Special Cleaning:
Cleaning for oxygen service
Operating Temperature:
-65 F to 300 F (-54 C to 149 C)
Orifice size:
0.188 Inch (4.8mm)
Handle option:
Black handle
Application:
In the key markets of chemical & refining, food, beverage & dairy, medical & dental, microelectronics, oil & gas, and power generation.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
