Department: Valves |
|
Product Type: Ball Valves and Plug Valves |
|

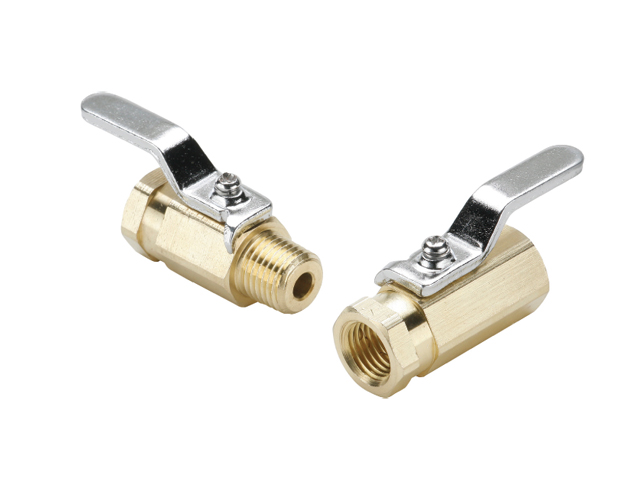

Product: Micro Ball Valve |
|
1- Thread 2 Type: NPT |
| » | Component Type: Valves |
| » | Valve Type: Ball Valve |
| » | Series: MV708 |
| » | Configuration Type: Male to Female |
| » | Max Pressure: 34 Bar (500 PSI) |
| » | Thread 1 Type: NPT |
| » | Material: Brass |
| » | Free Flow CV Factor: 0.95 |
| » | Material - Ball: Chrome Plated Brass |
| » | Material - Handle: Steel |
| » | Material - Seats/Seals: PTFE |
| » | Material Stem O-Ring: Nitrile |
| » | Max Vacuum: 29 |
| » | Operating Temperature: -35°F to +300°F |
| » | Parker Division: Fluid Systems Connector (Brass Products) |
| UOM | Thread 2 | Flow Diameter | Thread 1 | Free Flow CV Factor | Material |
|---|---|---|---|---|---|
| EA | 1/8 NPT | 0.18 Inch | 1/8 NPT | 0.95 | Brass |
| EA | 1/4 NPT | 0.21 Inch | 1/4 NPT | 0.95 | Brass |
|
UOM: Thread 2: Flow Diameter: Thread 1: Free Flow CV Factor: Material: |
EA 1/8 NPT 0.18 Inch 1/8 NPT 0.95 Brass |
|
UOM: Thread 2: Flow Diameter: Thread 1: Free Flow CV Factor: Material: |
EA 1/4 NPT 0.21 Inch 1/4 NPT 0.95 Brass |
