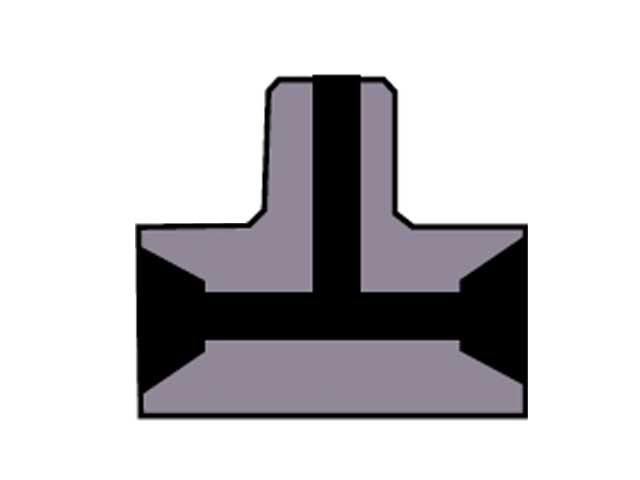

Autoclave Engineers Low Pressure Male Branch Tee Fitting - PAutoclave Engineers Low Pressure Male Branch Tee Fitting - P

Autoclave Engineers Low Pressure Male Branch Tee Fitting - P

Parker Autoclave Engineers Low Pressure Male Branch Tee Fitting - P

Email this page to a friend


Showing 1 - 5 of 5
Part # Availability Price/UOM
BPT4440 N/A Call to Order
BPT6660 N/A Call to Order
BPT8880 N/A Call to Order
BPT12 N/A Call to Order
BPT16 N/A Call to Order
UOM Connection Type Minimum Opening Length Material
EA 1/4 Inch NPT 0.219 Inch (5.54mm) 2.00 Inch (50.8mm) 316 Stainless steel
EA 3/8 Inch NPT 0.297 Inch (7.54mm) 2.00 Inch (50.8mm) 316 Stainless steel
EA 1/2 Inch NPT 0.359 Inch (9.12mm) 3.00 Inch (76.2mm) 316 Stainless steel
EA 3/4 Inch NPT 0.609 Inch (14.47mm) 3.00 Inch (76.2mm) 316 Stainless steel
EA 1 Inch NPT 0.765 Inch (19.43mm) 4.12 Inch (104.65mm) 316 Stainless steel
BPT4440
N/A
Call to Order

UOM:

Connection Type:

Minimum Opening:

Length:

Material:

EA

1/4 Inch NPT

0.219 Inch (5.54mm)

2.00 Inch (50.8mm)

316 Stainless steel

BPT6660
N/A
Call to Order

UOM:

Connection Type:

Minimum Opening:

Length:

Material:

EA

3/8 Inch NPT

0.297 Inch (7.54mm)

2.00 Inch (50.8mm)

316 Stainless steel

BPT8880
N/A
Call to Order

UOM:

Connection Type:

Minimum Opening:

Length:

Material:

EA

1/2 Inch NPT

0.359 Inch (9.12mm)

3.00 Inch (76.2mm)

316 Stainless steel

BPT12
N/A
Call to Order

UOM:

Connection Type:

Minimum Opening:

Length:

Material:

EA

3/4 Inch NPT

0.609 Inch (14.47mm)

3.00 Inch (76.2mm)

316 Stainless steel

BPT16
N/A
Call to Order

UOM:

Connection Type:

Minimum Opening:

Length:

Material:

EA

1 Inch NPT

0.765 Inch (19.43mm)

4.12 Inch (104.65mm)

316 Stainless steel

Showing 1 - 5 of 5
Parker Autoclave Engineers P Series pipe fittings and couplings are designed for primary liquid and gas applications. Available from 1/4" to 1" NPT to 15,000 psi and temperatures to 400°F. Special material components may be supplied with four flats in place of standard hex. NPT (Pipe) Connections: - NPT threads must be sealed using a high quality PTFE tape and/or paste product. Refer to thread sealant manufacturer's instructions on how to apply thread sealant. - Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant. - Customer should limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time. When using only PTFE tape, consider using thread lubrication to prevent galling of mating parts.

Application: In the key markets of chemical & petrochemical, research, and oil & gas industries.
