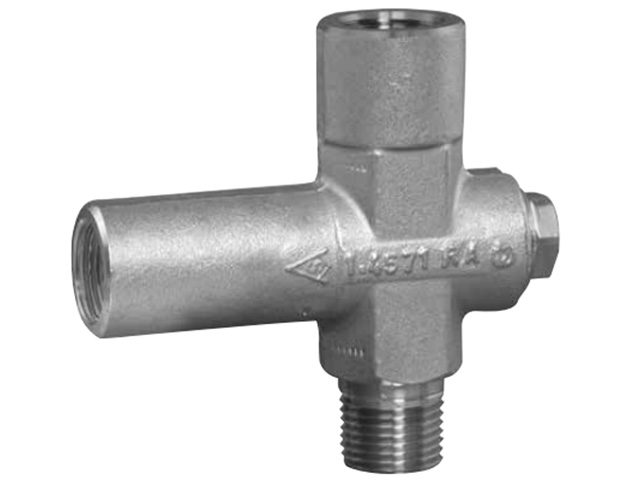

Wika 50681249 Overpressure Gauge Protector Model 910.13 85 to 365 PSI Factory-set 1/2 NPTF X 1/2 NPTM Stainless SteelWika 50681249 Overpressure Gauge Protector Model 910.13 85 to 365 PSI Factory-set 1/2 NPTF X 1/2 NPTM Stainless Steel

Wika 50681249 Overpressure Gauge Protector Model 910.13 85 to 365 PSI Factory-set 1/2 NPTF X 1/2 NPTM Stainless Steel

Overpressure Gauge Protector

Email this page to a friend


Showing 1 - 1 of 1
Part # Availability Price/UOM
50681249 N/A Call to Order
UOM Connection Size Gauge Pressure Range Material
EA 1/2 NPTF X 1/2 NPTM 85 to 365 PSI Factory-set Stainless Steel
50681249
N/A
Call to Order

UOM:

Connection Size:

Gauge Pressure Range:

Material:

EA

1/2 NPTF X 1/2 NPTM

85 to 365 PSI Factory-set

Stainless Steel

Showing 1 - 1 of 1
The overpressure protector consists of a spring loaded piston valve. Under normal pressure conditions the spring holds the valve open. When the system pressure exceeds the set pressure, the force exerted by the spring is overcome and the valve closes. The valve will remain closed until the system pressure drops approximately 25% below the closing pressure, where-upon the force of the spring will open the valve. To change pressure setting: S Turn adjusting screw clockwise ⇒ closing pressure higher. Turn adjusting screw counter clockwise ⇒ closing O-Ring pressure lower. Overpressure protectors must not be used as process control devices.

Application: Adjustable overpressure protectors are intended to protect pressure gauges against the effect of pressures exceeding their maximum pressure rating. Stainless steel version for corrosive pressure media, even in corrosive ambience. Process industry: mechanical engineering and plant construction, chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology.
